DGZX 4MP MIPI NIR Night Vision HDR Camera Module
Product Nob.：DGZX-AS-BA018AA40M3-51
Active pixels：4MP 2688x1520
Sensor：OS04A10 (1/1.79") CMOS
Angle/EFL：112/3.5mm (customizable)
F.NO：2.8士0.5% (customizable)
Distortion：<-0.1%
Format：YUY2/YUV/JPEG/MJPEG
Frame rate：30x3 fps @ 1520p
Features：● Security camera ● VR/AR ● ADAS ● Machine vision ● Action camera ● High resolution consumer camera
Interface：MIPI
Size：L*W*H:51*24*24.6mm (customizable)
DGZX 4MP MIPI HDR NIR Night Vision Camera Module
Product Nob.：DGZX-AS-BA018AA40M3-51
Active pixels：4MP 2688x1520
Sensor：OS04A10(1/1.79")CMOS
Angle/EFL：112°/3.5mm(customizable)
F.NO：2.8±0.5%(customizable)
Distortion：<-0.1%
Format：YUY2 /YUV/ JPEG /MJPEG
Frame rate：30x3 fps @ 1520p
Features：● Security camera ● VR/AR ● ADAS ● Machine vision ● Action camera ● High resolution consumer camera
Interface：MIPI
Size：L*W*H:51*24*24.6mm(customizable)
DGZX 4MP MIPI HD 2K 60fps Camera Module
Product Typ：DGZX-AS-AB368A64M3-42
Active pixels：4MP 2560x1440
Sensor：GC4663(1/3")CMOS
Angle：Customizable
Format：RAW12、RAW10
Frame rate：2K(2560x1440):60fps
Applications：Security Monitoring; Car Recorder, Sports Camera; Robot;Drone Aerial Photography, Law Enforcement instrument, etc.
Interface：MIPI
Size：L: 42mm (24pin FPC)
DGZX 4MP MIPI HD NIR HDR Camera Module
Product Nob.：DGZX-AS-BA018AA40M3-51
Active pixels：4MP 2688x1520
Sensor：OS04A10(1/1.79")CMOS
Angle/EFL：Lenses are available on request
Frame rate：30x3 fps @ 1520p
Features & Applications：Nearinfrared enhancement; ultra-low light; 3-exposure HDRAl-enabled surveillance; object identification; drones;Face Recognition; Sports cameras; Robotics; Car Recorder
Interface：MIPI
Size：L:51mm(FPC)
DGZX MIPI HD 4MP 90fps HDR Camera Module
Product Typ：DGZX-AS-AC468A4M1-50
Active pixels：4MP 2688x1520
Sensor：SonyIMX464(1/1.8")CMOS
Angle：Customizable
Format：RGB RAW
Frame rate：2688x1520:90 fps
Applications：Security Monitoring, Car Recorder, Sports Camera; Robot;Drone Aerial Photography, Law Enforcement Instrument, etc.
Interface：MIPI
Size：L:50mm(24 Pin FPC)
DGZX 4MP Mipi Wide Angle High-speed HDR Camera Module
Product Typ：DGZX-AS-AA018AC40M9-30x20
Active pixels：4MP 2688x1520
Sensor：OmniVision OS04C10(1/3")CMOS
Angle：Customizable
Format：RGB RAW
Frame rate：2688x1520:60fps 1920x1080:80fps 1280x720:240fps
Applications：Security Monitoring, Car Recorder, Sports Camera; Robot;Drone Aerial Photography; Law EnforcementInstrument, etc.
Interface：MIPl speed up to 1500 Mbps
Size：L*W:30*20mm(PCB)
DGZX MIPI 4MP 1080P Auto Focus Camera Module
Product Typ：DGZX-AS-AA988A64M39-60
Active pixels：4MP 2688x1520
Sensor：OV4689(1/3")CMOS
Angle/EFL：Customizable
Frame rate：30fps-330 fps
Outputformats：10-bit RAW RGB (MIPI)
Features &Application：sport camera; UAV; Barcode scanning; AutomotiveSecurity monitoring system; High-speed photography systemIP camera; Vehicle mounted law enforcement instrument
Size：L: 60mm (FPC)
DGZX MIPI HD 4MP NIR HDR camera module
ProductTyp：DGZX-AS-AA018AA40M5-38x38
Active pixels：4MP 2688x1520
Sensor：OS04A10(1/1.79")CMOS
Angle/EFL：Lens optional
Format：RAW
Frame rate：30x3 fps @ 1520p
Features：QE enhancement in NlR range; Automatic switching day& nightSecuritymonitoring ● Smart home ● Visual doorbell ● Face recognition ● Motion camera ● UAV ● DASH CAM
Interface：MIPI
Size：L*W: 38*38mm

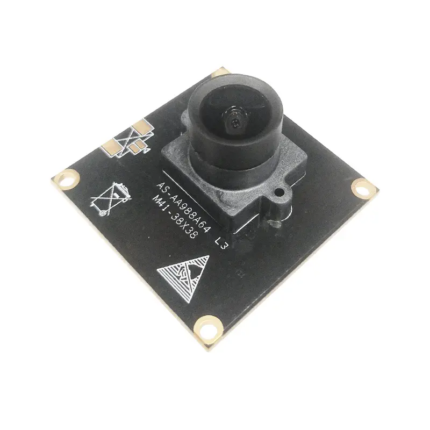

DGZX 4MP Mipi 2K 1080P OV4689 Wide Angle Sport Camera Module
Product Typ：DGZX-AS-AA988A64M1-38x38
Active pixels：4MP 2688x1520
Sensor：OV4689(1/3")CMOS
Angle/EFL：Lens optional
Frame rate：4MP:30fps 1080P:120fps 720P:180fps 672x380:330 fps
Formats：10-bit RAW RGB
Features & Application：Machine vision; Barcode scanning; Automotive electronicsSecurity monitoring system; High-speed photography systemSports DV, driving recorder, police enforcement instrument
Interface：MIPI
Size：L*W: 38*38mm (Customizable)
DGZX 4MP Mipi 1/3 Inch Cmos GC4653 2K 1080P WDR Anti-Glare Camera Module
Product Typ：DGZX-AS-DB358A64M2-33
Active pixels：4MP 2560Hx1440V
Sensor：GC4653(1/3")CMOS
Angle/EFL：Optional lenses
Format：RAW
Frame rate：2560Hx 1440V: 30 fps
Features：-Surveillance; Scan Code ;Smart Home/Internet of Things -Face Recognition ; IndustrialInspection ; Hi-Res Camera
Interface：MIPI
Size：L:33mm(Customizable)
DGZX OS04C10 4MP 2K 1080P HD high frame rate 240fps with IR cut-off camera module
Product Typ：DGZX-AS-DA018AC40M8-46
Active pixels：4MP 2688x1520
Sensor：OS04C10(1/3")CMOS
Angle：Optional lens
Format：RAW RGB
Frame rate：2688x1520:60fps 1920x1080:80fps 1280x720:240fps
Features：● Barcode scanner ● Gesture Recognition ● 3D scanning ● Positional tracking ● lris scanning ● AR/VR ● Internet of Things ● Biometrics ● Machine vision
Interface：MIPI
Size：L:46mm(customizable)
DGZX OS04A10 HDR 4MP 1520P 90fps near-infrared enhanced with IR-CUT MIPI camera module
Product Typ：DGZX-AS-AA018AA40M2-20x21
Active pixels：4MP 2688x1520
Sensor：OS04A10(1/1.79")CMOS
Angle/EFL：Optional lens
Format：RAW RGB
Frame rate：30x3 fps @ 1520p
Features：● Security camera ● VR/AR ● ADAS ● Machinevision ● Action camera ● High resolution consumer camera
Interface：MIPI
Size：L*W:20*21mm(customizable)
