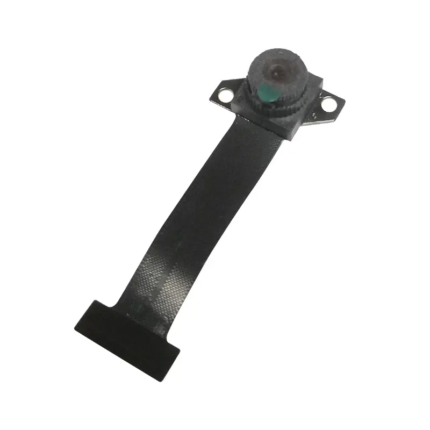

DGZX MIPI 2MP HD 1080P 60fps NIR HDR camera module
Product Typ：DGZX-AS-BGIA8A002M6-46
Active pixels：2MP 1928Hx1088V
Sensor：SC200AI(1/2.8")CMOS
Angle/EFL：D:75°H:66°V:39°/4.35mm(Lens optional)
Format：RAW RGB
Frame rate：1920Hx 1080V@60fps 10bit
Features：● Security monitoring ● Scan code ● Obstacle avoidance ● Hovering ● Industrial equipment ● Vehicle Recorder ● Advertising Player ● Action camera ● Drone ● Robot
Interface：MIPI
Size：L:46mm(25pin 10*10mm module header)
DGZX MIPI HD 4MP NIR HDR camera module
ProductTyp：DGZX-AS-AA018AA40M5-38x38
Active pixels：4MP 2688x1520
Sensor：OS04A10(1/1.79")CMOS
Angle/EFL：Lens optional
Format：RAW
Frame rate：30x3 fps @ 1520p
Features：QE enhancement in NlR range; Automatic switching day& nightSecuritymonitoring ● Smart home ● Visual doorbell ● Face recognition ● Motion camera ● UAV ● DASH CAM
Interface：MIPI
Size：L*W: 38*38mm
DGZX-AS-AA018AA40M4-105 OS04A10 4MP HD NIR Enhanced MIPI Color Night Vision AI Camera Module with IR Cutout
Special Features:NIGHT VISION, Face Recognition, With IR-CUT, NIR
Network:wifi, Ip, SDK Video Compression Format:H.264, RAW
Application:Indoor, Outdoor Image Sensor:OS04A10
Customized support:Online technical support, OEM, ODM
Module Dimensions:105mm(L) HD:1520P 2K 1080P
Interface:MIPI Pixel:4MP 2688*1520
Frame rate:30fps Lens Size:1/1.79 inch
Color space / compression:RAW Certification:RoHS
System compatible:Windows Android Linux
DGZX-AS-BA018AA50M1-46 OS05A10 OS05A20 5MP NIR MIPI camera module
A 5 megapixel (5MP) near infrared (NIR) MIPI camera module. The module integrates advanced image sensor technology and near infrared filters, enabling it to provide high-quality images in low light conditions. The application of the MIPI interface standard ensures the module's high data transfer rate and low power consumption.
