DGZX 1.3MP DVP HD 720P RAW YUV 30fps Camera Module
Product Typ：DGZX-HDF1375-22
Active pixels：1.3MP 1296x1040
Sensor：HM1375(1/4")CMOS
Angle/EFL：128°/2.33mm (Lens optional )
Format：RAW, YUV422, RGB
Frame rate：30fps SXGA RAW @ 54MHz 30fps SXGA YUV @ 108MHz30fps 720 YUV @ 78MHz
Function & Application：● Face recognition/objectrecognition ● Code scanning ● Smart home ● Video surveillance ● lndustrial equipment
Interface：DVP
Size：L*W*H: 22*12.8*12.5mm

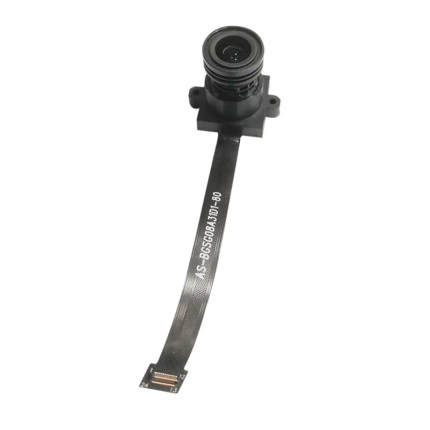

DGZX HD 1.3MP DVP 240fps global-shutter camera module
Product typ：DGZX-AS-BGSG08A31D1-80
Active pixels：1.3MP 1288Hx1032V
Sensor：SC130GS(1/2.7")CMOS
Angle：133°/3.3mm( lens optional )
Format：YUY2 /YUV/JPEG /MJPEG
Frame rate：RAW
Features：● Bar code scanner ● Gesture Recognition ● 3D scanning ● Positional tracking ● lris scanning ● Augmented reality ● Virtual reality ● Biometrics ● Machine vision
Interface：DVP
Size：L*W*H:80*17.2*16.73mm
DGZX MIPI 1.3MP 120fps global shutter Camera module
Product Typ：DGZX-AS-AAB18AA10M2-100
Active pixels：1.3MP 1280x1024
Sensor：OG01A1B(1/5")CMOS
View angle/EFL：Customizable
Frame rate：1.3 MP (1280x1024): 120 fps VGA(640x480):240 fps
Application：Augmented and virtual reality; gaming; machine visionindustrial automation; drones; biometric authentication3Dimaging; industrial bar code scanning, Obstacle avoidance
Interface：MIPI
Size：L:100mm(customizable)
