DGZX 2MP 1080P USB with HUB Single Port Output Camera Module
Product Typ：DGZX-QQSJ-8899
Active pixels：2MP HDR + 2MP IR
Sensor：AR0230(1/2.7")CMOS OV2710(1/2.7")CMOS
View angle/EFL：75°/4.43mm (lens optional )
Format：MJPG, YUY2
Frame rate：1920(H)*1080 (V): 30 fps
Features：● Face recognition ● Supervisinge quipment ● Smart home ● Video conference ● Drone ● License plate snapshot
Interface：USB 2.0,Drive-free plug and play
Size：L*W*H:88*19*10.18mm(customizable)
DGZX 2MP HD GC02M2 wide-angle USB drive free camera module
DGZX 2MP MIPI 1080P HD low light SC223A camera module
DGZX 2MP MIPI Full HD 1080P Wide Angle Low Illumination F23 Camera Module
DGZX 2MP OV2735 1/3-Inch HD 1080p Low-Light IR-CUT UVC USB Camera Module
Product Typ：DGZX-QQSJ-8994
Active pixels：2MP 1920*1080
Sensor：OV2735(1/2.7")CMOS
Angle/EFL：Optional lens
Format：YUV /MJPEG
Frame rate：1080p @ 30 fps
Features：● Face recognition ● Advertising all-in-one machine ● Self-service terminals ● Smart home/Smart recognition ● Sports camera ● Security monitoring ● Driving recorder
Interface：USB2.0 Drive-free Plugand Play
Size：Customisable
DGZX 4MP Mipi 1/3 Inch Cmos GC4653 2K 1080P WDR Anti-Glare Camera Module
Product Typ：DGZX-AS-DB358A64M2-33
Active pixels：4MP 2560Hx1440V
Sensor：GC4653(1/3")CMOS
Angle/EFL：Optional lenses
Format：RAW
Frame rate：2560Hx 1440V: 30 fps
Features：-Surveillance; Scan Code ;Smart Home/Internet of Things -Face Recognition ; IndustrialInspection ; Hi-Res Camera
Interface：MIPI
Size：L:33mm(Customizable)
DGZX AR0230 1MP 1080P H.264 MJPG output HDR wide dynamic wide angle USB infrared night vision camera module

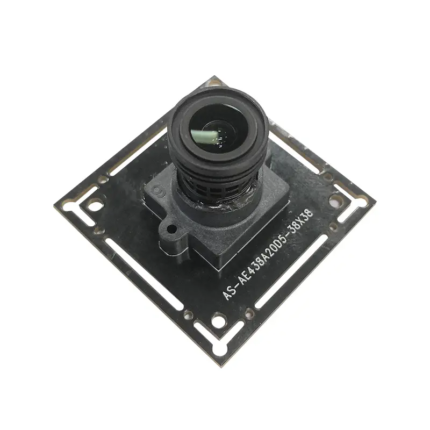

DGZX AR0234 2MP 1080P Colour Global Exposure High Speed 120fps Dvp Camera Module
DGZX-AS-AE438A20D5-38x38
Active pixels：2.3MP 1920(H)x1200 (V)
Sensor：AR0234(1/2.6")CMOS
Angle：Customizable
Format：Raw
Frame rate：1080P: 120fps (MIPI) ; 30 fps (Parallel)
Features：● Bar code scanner ● Gesture Recognition ● 3D scanning ● Positional tracking ● lris scanning ● Augmented reality ● Machine vision ● Virtual reality ● Biometrics
Interface：DVP
Size：L*W:38*38mm(customizable)
DGZX GC5035 HD 5MP 2K 1080P MIPI distortion free camera module
DGZX IMX307 MIPI 1080p 2MP HD wide dynamic starlight level FPC camera module
Product Typ：DGZX-AS-BC708A3M2-67(17X17-70°)
Active pixels：2MP 1920(H)*1080(V)
Sensor：IMX307(1/2.8")CMOS
EFL/View Angelp：70° No distortion/4.3mm
Format：RAW
Frame rate：1920(H)*1080 (V): 60 fps
Features：● Face recognition ● Mobile payment ● Smart home ● Drone ● Security monitoring ● Action camera ● Big screen all-in-one
Interface：MIPI
Size：L*W*H:67*17*9.36mm(customizable)
DGZX IMX307 Mipi 2MP 1080P 60fps Starlight Low Light Wide Dynamic Camera Module
DGZX-AS-BC708A3M15-67(17X17-133°)
Active pixels：2MP 1920(H)*1080(V)
Sensor：IMX307(1/2.8")CMOS
EFL/View Angel：133°/2.95mm
Format：RAW
Frame rate：1920 (H)*1080 (V): 60 fps
Features：● Face recognition ● Mobile payment ● Smart home ● Drone ● Security monitoring ● Action camera ● Big screen all-in-one
Interface：MIPI
Size：L*W*H:67*17*24mm(customizable)
