DGZX 1MP HD 60fps 720P USB Mini Global Shutter Camera Module
Product typ：DGZX-QQSJ-8998
Active pixels：1MP 1280x720
Angle：180°/1.47mm( Lens optional )
Format：YUV422 ;MJPG
Frame rate：720p:60 fps
Features：● Bar code scanner ● Gesture Recognition ● 3D scanning ● Positional tracking ● lris scanning ● Augmented reality ● Virtual reality ● Biometrics ● Machine vision
Interface：USB2.0 Drive free plug and play
Size：L*W:70*20mm

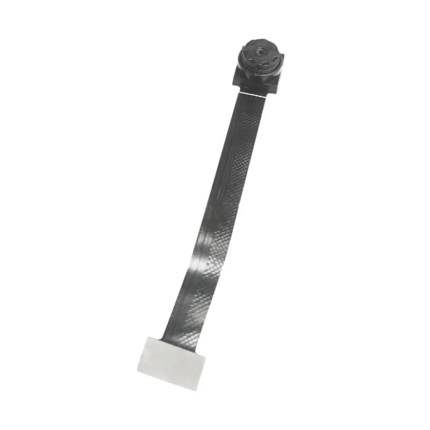

DGZX 1MP HD 720P FPC DVP camera module
Product Typ：DGZX-AS-HA508A41D2-28
Active pixels：1MP，1280x720
Sensor：SP1405(1/4")CMOS
Angle/EFL：70°/3.15mm(Lens optional)
Format：RAW
Frame rate：720p: 30 fps VGA: 45 fps
Features & application：● Full-frame, sub-sampled, cropped images in variousformats and parameters are programmable througha standard l2C interface. ● SecuritySurveillance 、Motion camera、Smart homeTraffic Sign Recognition 、Video Surveillance
Interface：DVP
Size：L:28mm
DGZX 1MP MIPI 720P 60FPS H63 CMOS HD Wide Dynamic Camera Module
DGZX-AS-AL368AHM7-110
Active pixels：1MP 1288Hx728V
Sensor：JX-H63(1/4")CMOS
Angle：Lens optional
Format：10-bit RGB Raw Data
Frame rate：1280x720:60fps HDR 1280x720: 30fps
Features：● Internet ofThings (loT) ● Video conferencing ● Security ● Action camera ● Drone ● Advertising machine
Interface：MIPI(DVP optional)
Size：L:110mm(customizable)
DGZX 1MP MIPI HD AR0144 Global Shutter 720P 66fps Camera Module
Product typ：DGZX-AS-BE448A10M1-15x22
Active pixels：1MP 1280Hx800V
Sensor：AR0144(1/4")CMOS
Angle：100°/2.1mm(Optional lens)
Format：RAW
Frame rate：1280Hx800V:60fps 720p:66 fps
Features：● Bar code scanner ● Gesture Recognition ● 3D scanning ● Positional tracking ● lris scanning ● Augmented reality ● Virtual reality ● Biometrics ● Machine vision
Interface：MIPI
Size：L*W:22*15mm(Customizable)
DGZX 1MP USB Type-C 720P 30fps Camera Module
Product Typ：DGZX-QQSJ-9019
Active pixels：1MP(1280x720)
Sensor：OV9732(1/4")CMOS
View angle/EFL：Customizable
Format：MJPG, YUY
Frame rate：720P:30fps
Features：● Supervising equipment ● Smart home ● Face recognition ● Video conference ● Drone ● License plate snapshot
Interface：Type-C Drive-free plug and play
Size：R:12.5mm/L*W:13*13mm(header)

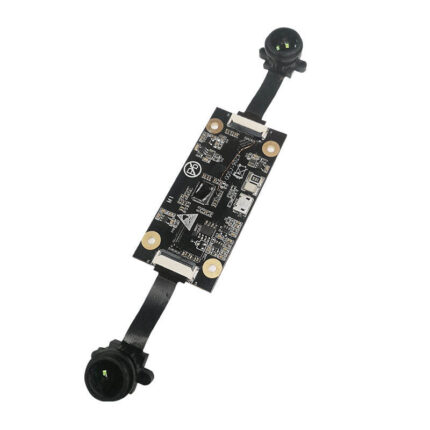

DGZX 2MP YUV 30fps Dual Lens USB3.0 Camera Module
DGZX Dvp 1MP SP1405 Sensor 720P Miniature Camera Module
Product Typ：DGZX-AS-AH508A41D-9x9
Active pixels：0.9MP，1280x720
Sensor：SP1405(1/4")CMOS
Angle/EFL：Optional lens
Format：RAW
Frame rate：720p: 30 fpsVGA: 45 fps
Features & Applications：● Full-frame, sub-sampled, cropped images in variousformats and parameters are programmable througha standard l2C interface. ● SecuritySurveillance、Motion camera、lP cameraTraffic Sign Recognition 、 Video Surveillance
Interface：DVP
Size：L*W:9*9mm (Customizable)
DGZX GC1064 1MP 720P 60fps mipi camera module
DGZX HD 1MP 720P MIPI GC1054 wide angle distortion-free FPC camera module
DGZX JX-H62 Sensor 1MP 720P HD Wide Angle MIPI Camera Module
DGZX Monochrome Sensor AR0144 Dvp 1MP HD 720P Global Shutter 1/4 Inch 60fps Low Power Drones Barcode Scanning Camera Module
DGZX-AS-AE448A10D2-55
Active pixels：1MP 1280Hx800V
Sensor：AR0144(1/4")CMOS
Angle：125°/2.6mm(Optional lens)
Format：YUY2 /YUV/JPEG /MJPEG
Frame rate：1280Hx800V:60fps 720p:66 fps
Features：● Barcode scanner ● Gesture Recognition ● 3Dscanning ● Positional tracking ● lris scanning ● Augmented reality ● Virtual reality ● Biometrics ● Machine vision
Interface：DVP
Size：L*W*H:55*19.2*17.8mm(customizable)
DGZX USB 1.8MP 720P global shutter camera module
Product typ：DGZX-QQSJ-9023
Active pixels：1.8MP 2560X720
Sensor：ARO144(1/4")CMOS
Angle：Optional lens
Format：YUY2 MJPEG
Frame rate：2560X720 :60fps
Features：● AI Visual Data Analysis ● Gesture Recognition ● 3D scanning ● Positional tracking ● lris scanning ● Augmented reality ● Virtual reality ● Biometrics ● Machine vision
Interface：USB2.0 drive free; plug&play
Size：L*W:60*25mm(PCB)
