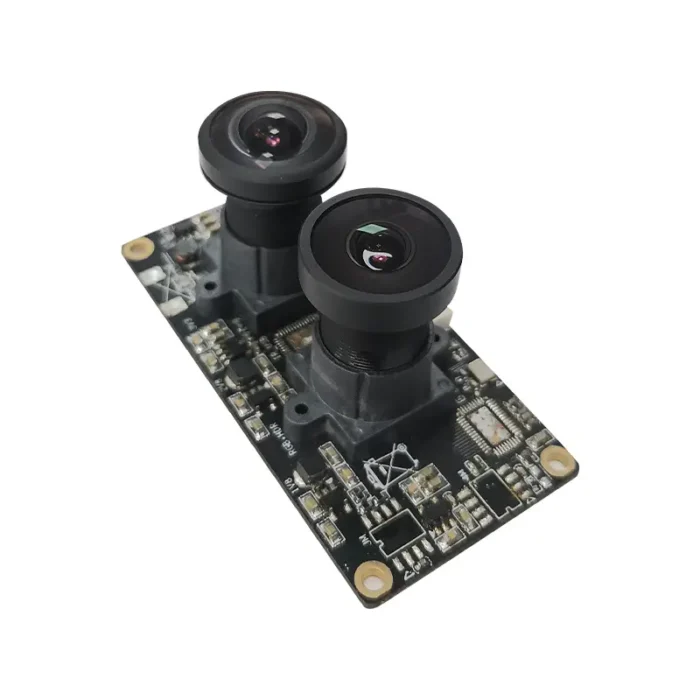

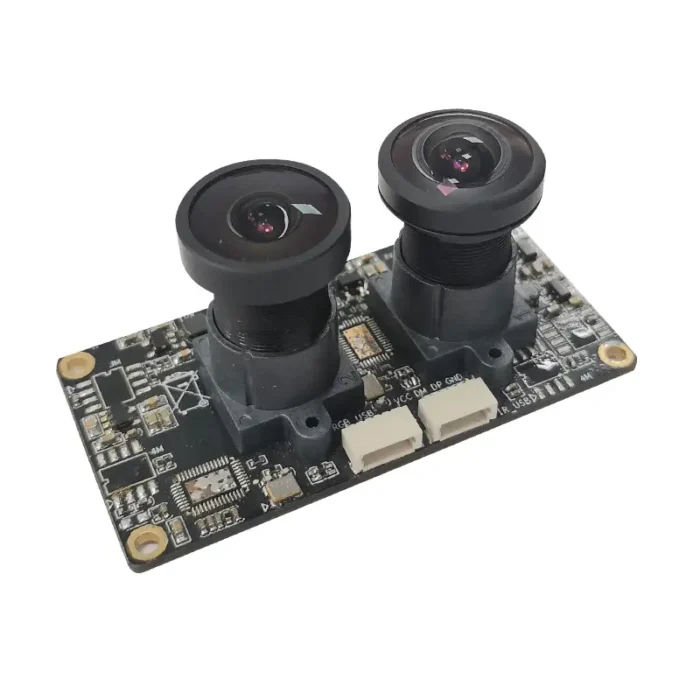

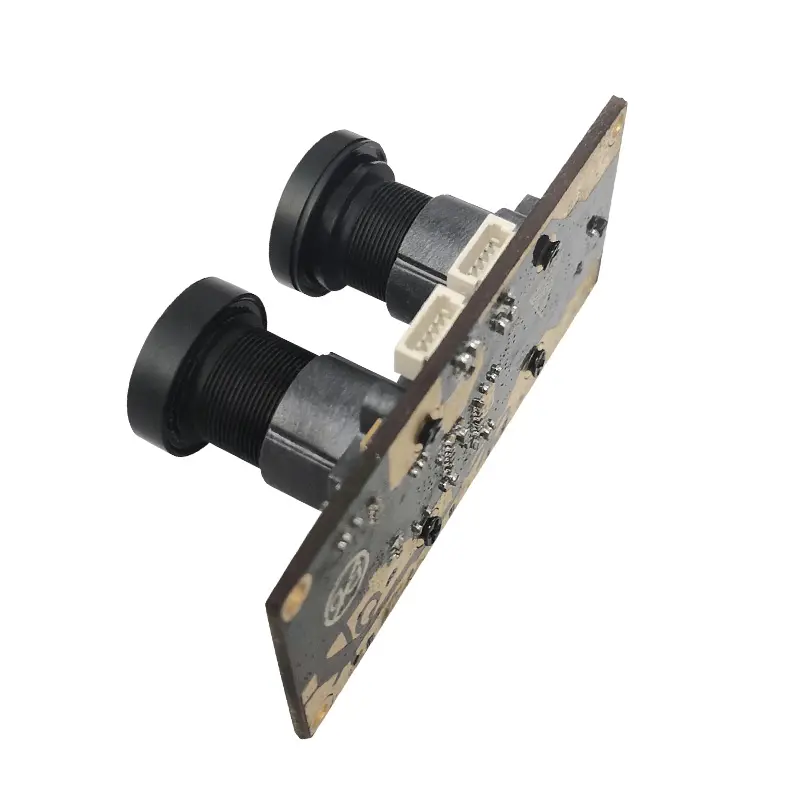

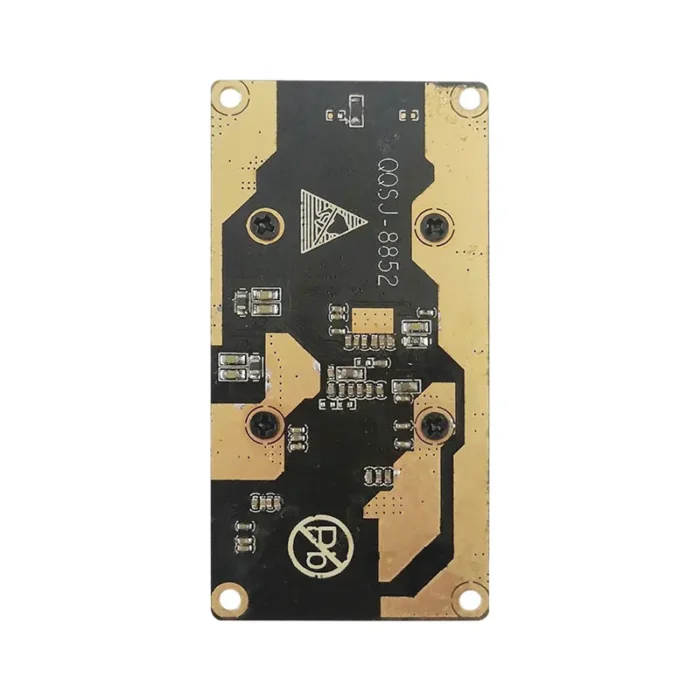

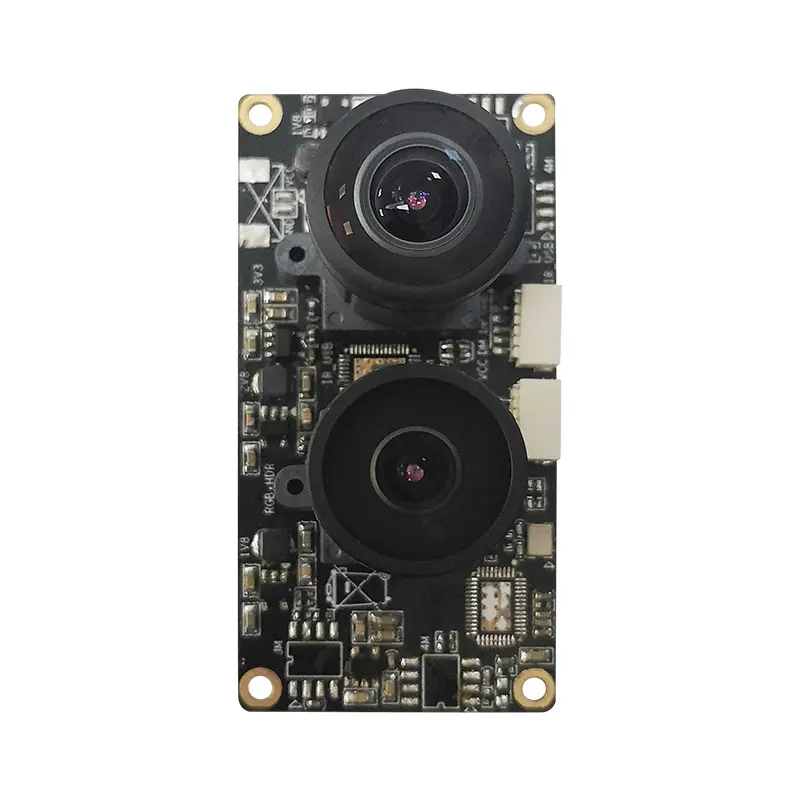

DGZX-8852 AR0230 RGB Bayer USB Camera Module 1.2 MP 30fps

DGZX-8852 is a camera module designed for home use that integrates a 1.2MP RGB Bayer filter, face detection function, and uses the AR0230 sensor and supports 30fps ultra-high quality CMOS image capture.

AR0230 sensor

The AR0230 is a high-performance CMOS image sensor that provides excellent image capture capabilities for the DGZX-8852.
The sensor features low noise, high sensitivity, and a wide dynamic range, ensuring clear, true images in all lighting conditions.

1.2MP RGB Bayer filter

The 1.2MP RGB Bayer filter is used, which enables the camera to capture richer color information.
The Bayer filter achieves high-quality color image capture by allocating RGB color information to different pixels and then restoring the complete color image through an interpolation algorithm.

Face Detective Function

The camera module has a built-in face detective function that can automatically identify and track faces.
This is very useful in application scenarios such as home monitoring and smart home, providing users with a more intelligent and convenient monitoring experience.

30fps ultra-high-quality CMOS image capture

The DGZX-8852 supports ultra-high-quality CMOS image capture at 30 frames per second, which means it can record dynamic scenes at a smooth speed.
High frame rate image capture helps capture more details and dynamic information, making the image more vivid and realistic.

Key attributes

Industry-specific attributes

Function：Wide Angle      Data Storage Options：Full HD

Other attributes

Model Number：DGZX-8852              Warranty：1 Year

Special Features：NIGHT VISION, Face Recognition, Motion Detection, Video Surveillance, Video Making, Machine Vision, High Color Reproduction, High Dynamic Range, Scanning, Snapshots, Action Recording

Network：SDK                                        Video Compression Format：H.264

Application：Indoor, Outdoor             Customized support：Online technical support, OEM, ODM

Product name：AR0230                       Certification：RoHS

Interface type：USB                              System compatible：Windows Android Linux

Color space：RGB Bayer or Monochrome         Pixel：1080P

Frame rate：30 fps                                Optical Format：1/2.7-inch (6.6 mm)

Pixel size：3 um * 3 um                        Resolution：1928*1088

Packaging and delivery

Selling Units:Single item                      Single package size:10X10X10 cm

Single gross weight:0.500 kg

Lead time

Quantity (pieces)       1 – 5       6 – 500       > 500

Lead time (days)        7           25                To be negotiated

Customization

Customized logo                      Min. order: 3 piece

Customized packaging

Min. order: 3 piece                 Graphic customization

Min. order: 3 piece

For more customization details, message supplier
