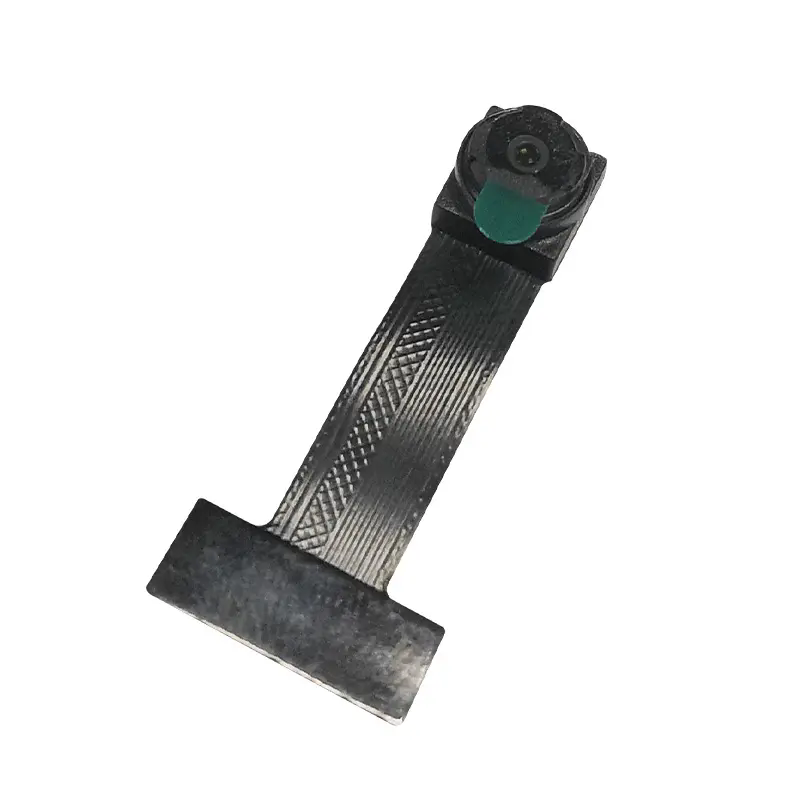

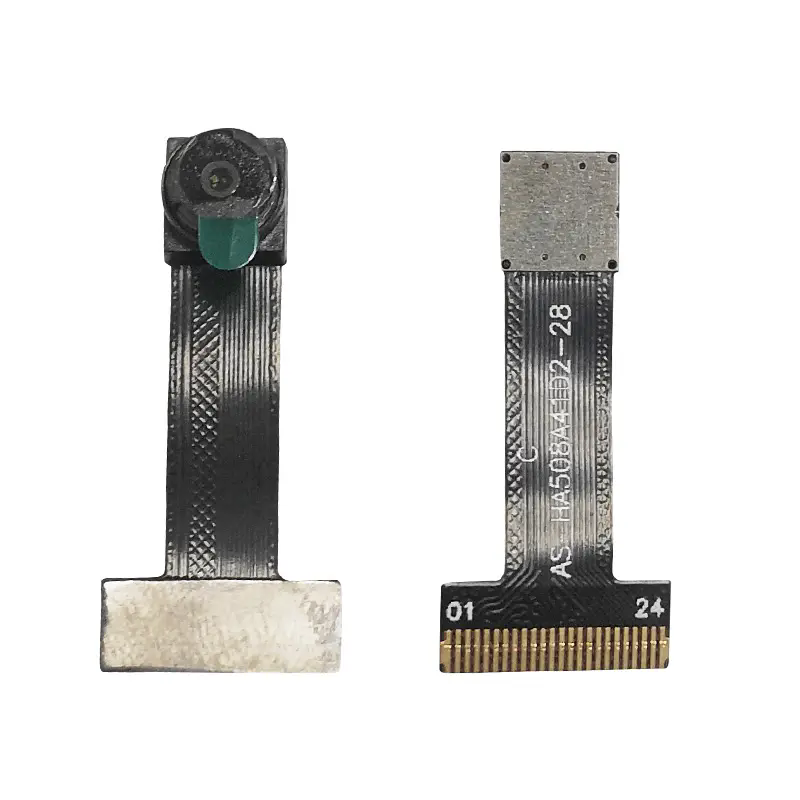

DGZX 1MP HD 720P FPC DVP camera module

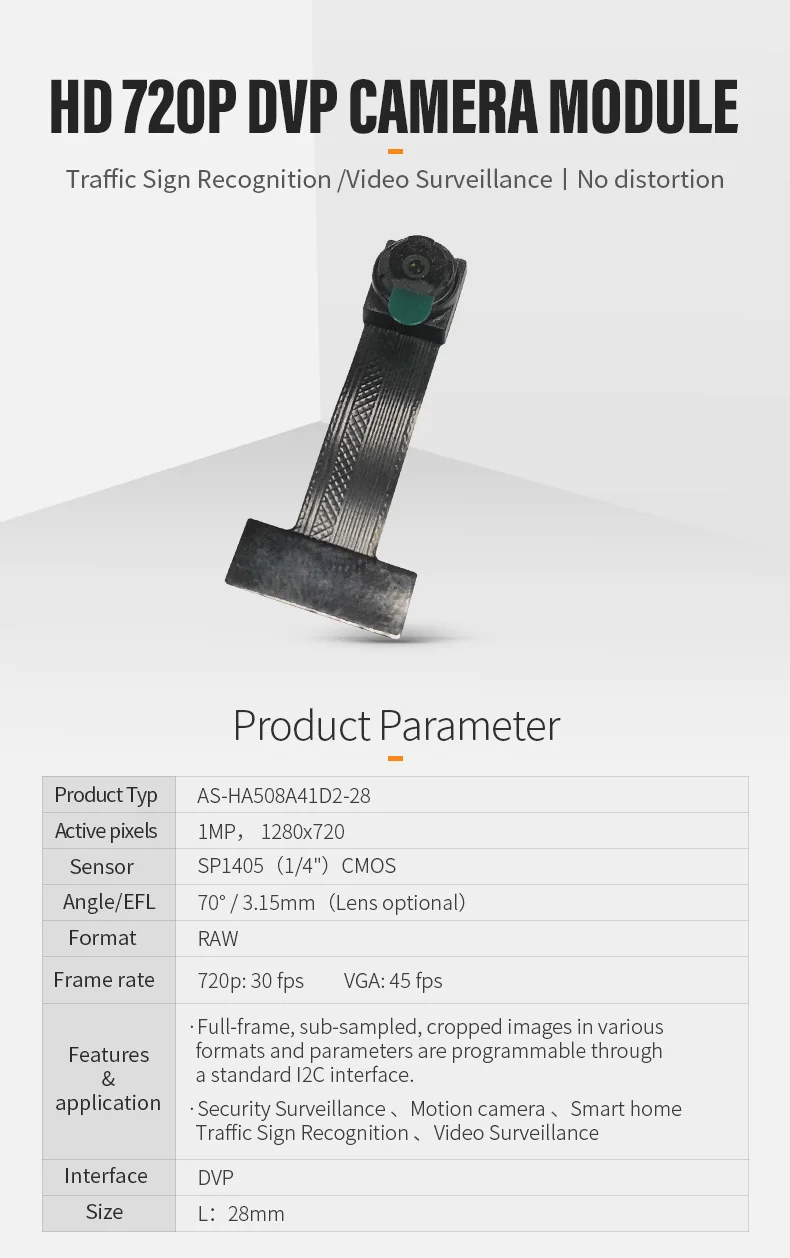

Product Typ：DGZX-AS-HA508A41D2-28
Active pixels：1MP，1280×720
Sensor：SP1405(1/4″)CMOS
Angle/EFL：70°/3.15mm(Lens optional)
Format：RAW
Frame rate：720p: 30 fps VGA: 45 fps
Features & application：● Full-frame, sub-sampled, cropped images in variousformats and parameters are programmable througha standard l2C interface. ● SecuritySurveillance 、Motion camera、Smart homeTraffic Sign Recognition 、Video Surveillance
Interface：DVP

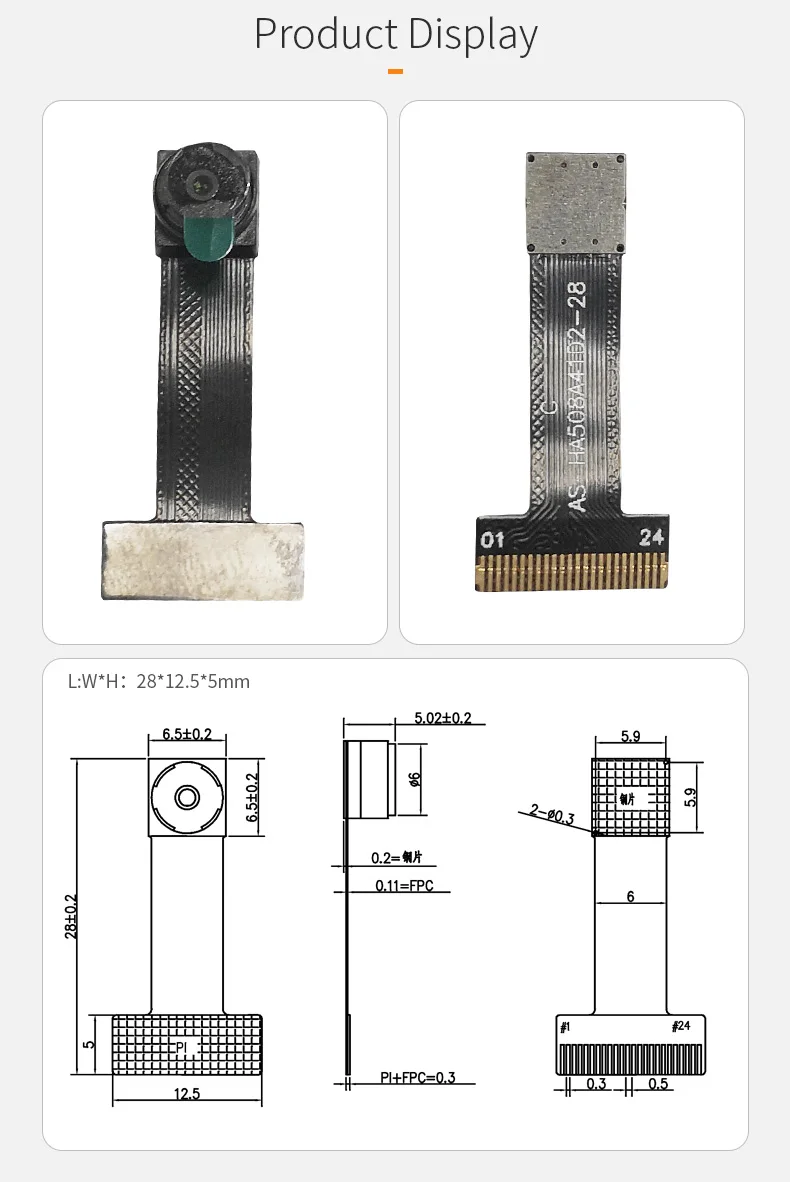

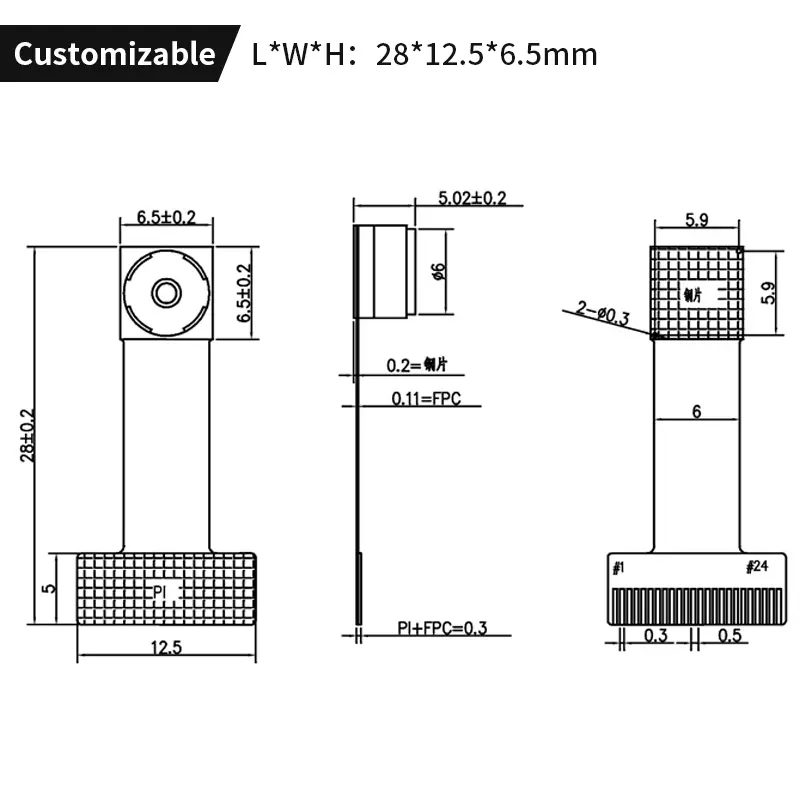

Size：L:28mm
RELATED PRODUCTS
DGZX NT99141 Dvp 1MP 720P HD Mini Sensor PCB Board for Robotic Machine Vision MCU ESP32 Camera Module
DGZX-HDF99141-38x38
Sensor Type：1/4" NT99141 Resolution：1MP(1284*724)
Frame rate：720P 30fps Module Size：38*38mm(L*W)
Pixel Size：3.0μm x 3.0μm Lens view：Optional
Focus：Fixed Interface：DVP
System compatible：Linux, Windows ,Android
Assembly technique：SMT (ROSH)
Function：Wide Angle Data Storage Options：Full HD
DGZX-HDF2010-A46 2MP DVP camera module MI2010 MT9D111 sensor, wide angle YUV with ISP, infrared night vision
Infrared night vision camera module, Large field of view wide angle camera module, Dvp Camera Module
Special Features:NIGHT VISION, face recognition
Network:SDK Video Compression Format:RAW
Image Sensor:MI2010 MT9D111 Interface:DVP
Module Dimensions:46*14*24mm(L*W*H)
HD:2K 1080P Pixel:1600x1200
Frame rate:15fps Lens Size:1/3.2 inch
Color space / compression:RAW RAW
System compatible:Windows Android Linux
