Global Shutter

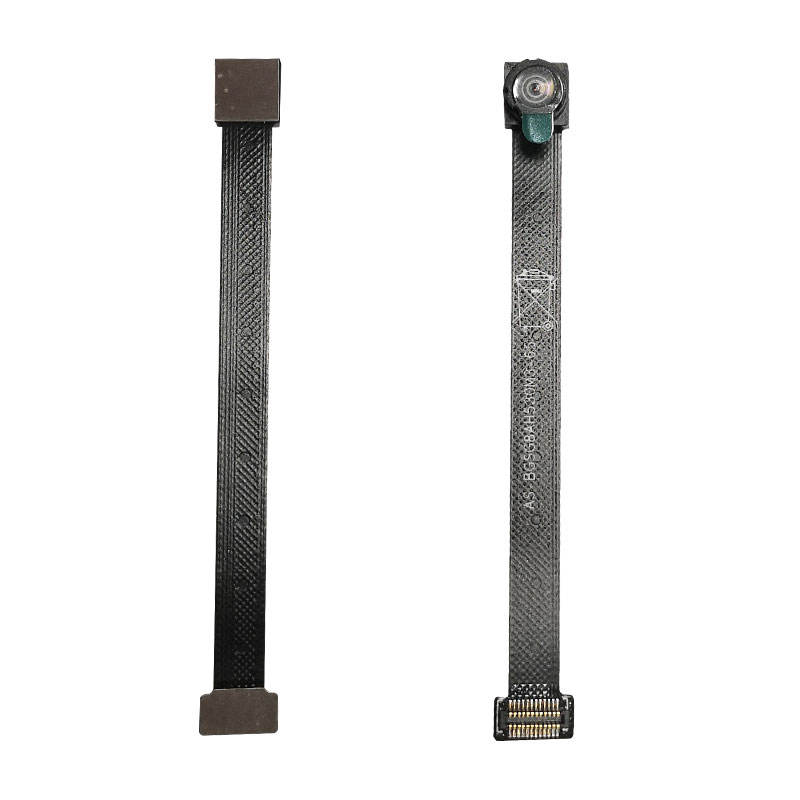

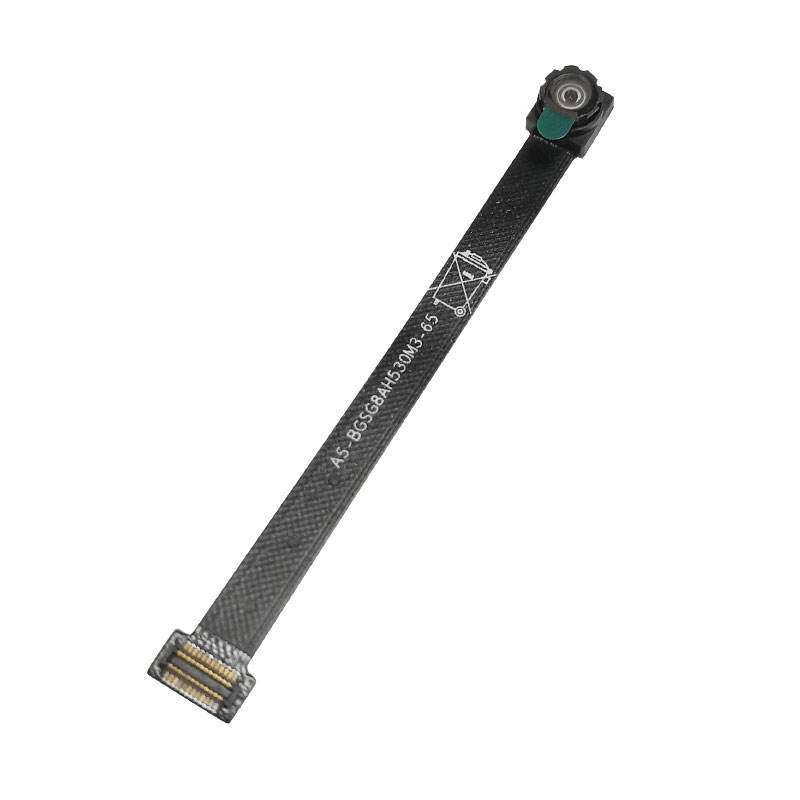

DGZX DVP 0.3MP HD Global Shutter 180FPS Camera Module
Product typ：DGZX-AS-BGSG8AH530D11-33
Active pixels：0.3MP 640Hx480V
Sensor：SC035HGS(1/6″)CMOS

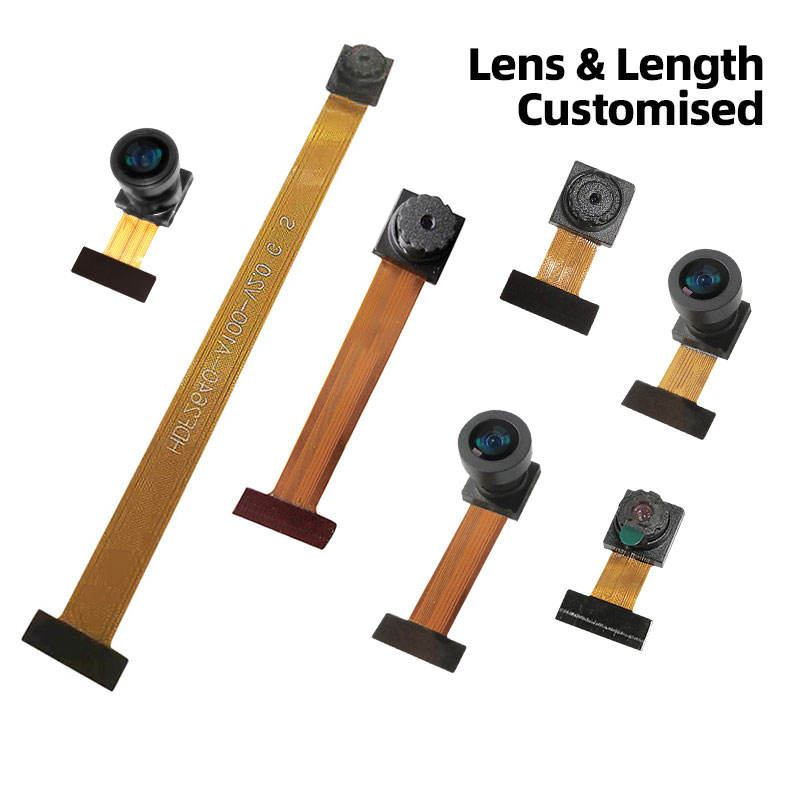

Angle：Customizable
Format：RAW MONO/RAW RGB
Frame rate：VGA: 180 fps
Features：● Bar code scanner ● Gesture Recognition ● 3D scanning ● Positional tracking ● lris scanning ● Augmented reality ● Virtual reality ● Biometrics ● Machine vision
Interface：DVP(customizable MIPI、LVDS)

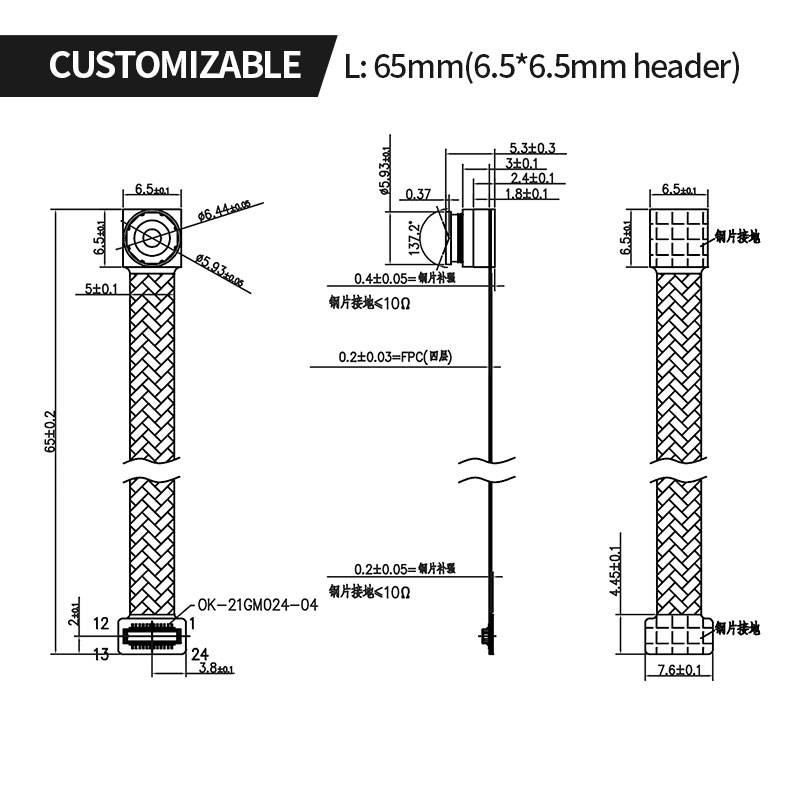

Size：L:33mm(customizable)
RELATED PRODUCTS
DGZX GC032A DVP 0.3MP ESP32 VGA 30 fps SPI Visual Headset Camera Module
DGZX-AS-BBA28A30D10-50
Active pixels：0.3MP 640x480 Sensor：GC032A(1/10”)CMOS
Format：YCbCr4:2:2、RGB565、Raw Bayer
Description：Visual Earphone Camera Module
Interface：DVP Pixel：30W Size：50*5*3mm(Customized)
Resolution：640x480 Frame Rate：30FPS
System compatible：Windows Android Linux
Sensor Type：COMS Lens：Optical
Output Format：YCbCr4:2:2/RGB565/Raw Bayer
DGZX MI2010/MT9D111 HD 2MP DVP wide angle camera module with ISP JPEG YUV
DGZX-AS-AE018A02D1-114
Image Sensor：MI2010 Pixel：2MP
Lens Size：1/3.2 inch full resolution：1600*1200
pixel size：2.8um*2.8um Function：Wide Angle
Data Storage Options：Full HD
Color space / compression：YUV/JPEG/ RAW
System compatible：Windows Android Linux
Certification：RoHS Interface：DVP
Module Dimensions：114mm(L)
DGZX NT99141 Dvp 1MP 720P HD Mini Sensor PCB Board for Robotic Machine Vision MCU ESP32 Camera Module
DGZX-HDF99141-38x38
Sensor Type：1/4" NT99141 Resolution：1MP(1284*724)
Frame rate：720P 30fps Module Size：38*38mm(L*W)
Pixel Size：3.0μm x 3.0μm Lens view：Optional
Focus：Fixed Interface：DVP
System compatible：Linux, Windows ,Android
Assembly technique：SMT (ROSH)
Function：Wide Angle Data Storage Options：Full HD
Dogoozx is a personalized customization service provider for camera module heads. Customized designs are welcome!
