DGZX 0.3MP 60fps Wide Angle CVBS Analog Camera Module
Product Typ：DGZX-AS-BPK98A804D1-26
Active pixels：3.4MP 720X480
Sensor：PC4089K(1/3")CMOS
Angle/EFL：Customizable
Format：-CVBS(NTSC/PAL) -ITU-R.BT656/CVBS -YCbCr422/RGB565/RGB444/Bayer
Frame rate：60fps/ 60 fields/sec
Features & Applications：SecuritySurveillance; Visual doorbells ; lP CameraVisual Anchor Fishing; Car Rearview Monitor; Fish Finder
Interface：Parallel/CVBS
Size：L:26mm(24pin FPC)
DGZX 0.3MP HD DVP MINI Camera Module
Product Typ：DGZX-AS-AE308AA3D1-18
Active pixels：0.3MP 640X480
Sensor：BF3A03(1/6.5")CMOS
Angle/EFL：52°/3.76mm (Lens Optional)
Frame rate：VGA: 30fps(24MHz)/60fps(48MHz)
Formats：Bayer RGB,RGB444,RGB555,RGB565,YCBCR 4:2:2
Interface：DVP
Application：QR code scanning, video conferencing, vehicle monitoring
Size：L:18mm(20pin FPC)
DGZX 0.3MP MIPI HD 30fps YUV Camera Module
Product Typ：DGZX-AS-AGT08A1030M3-50
Active pixels：0.3MP 640X480
Sensor：SC030l0T(1/6.5")CMOS
Angle/EFL：Lens optional
Frame rate：640Hx480V@30fps 10bit
Outputfommats：RAW RGB/YUV422
Applications：Code scanning, Smart home, Security monitoring; loT CamIndustrialendoscope detector; Underwater detector.etc
Interface：MIPI
Size：L: 50mm (24pin Fpc)
DGZX 0.3MP Wide Angle Low-light Night Vision USB Camera Module

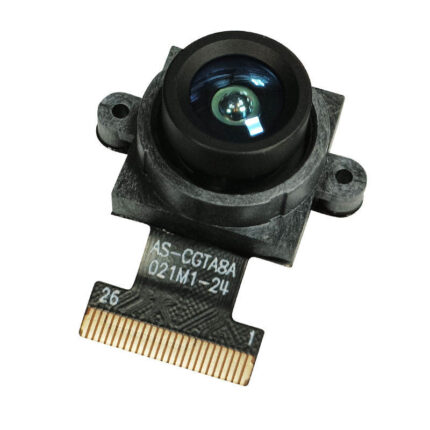

DGZX 1.3MP MIPI HD Automotive Camera Module
Product Typ：DGZX-AS-CGTA8A021M1-24
Active pixels：1.3MP 1288Hx968V
Sensor：SC120AT(1/3.7")CMOS AEC-Q100 Grade 2 compliant
EFL/View Angel：Lens optional
Format：YUV422 / RAW
Frame rate：30fps@ 3-exposure HDR
Features & Applications：Built-in ISP; High light sensitivity ; 120dB Wide DynamicVehicle RearView lmaging; Vehicle Blind Spot DetectionVehicle 360-degree surround view and other applications
Interface：MIPI
Size：L:24mm(26pin FPC)
DGZX 1080P 2MP HD H.264 MJPG YUV Long Focus Lens SC2210 Industrial Monitoring USB Camera Module
DGZX-QQSJ-8906
Image Sensor：SC2210
Module Dimensions：38*38mm(L*W)PCB
Feature：Starlight Low Light NIR HDR
Interface：USB2.0 Pixel：2MP 1920x1080
Frame rate：1080P 30fps Lens Size：1/1.8 inch
Color space / compression：H.264 MJPG YUY2
System compatible：Windows Android Linux
Certification：RoHS Data Storage Options：Full HD
Function：Wide Angle, built-in mic, Lens Optional
DGZX 12MP 4K HD USB Camera Module
Product Typ：DGZX-QQSJ-9031
Active pixels：12MP 4032*3024
Sensor：SonyIMX377(1/2.3")CMOS
EFL/View Angel：D:110°H:88°V:66°/2.97mm (Lens optional)
Format：YUY2 ;MJPG
Frame rate：4032*3024/15FPS
Features & Application：High definition facial photography, Smart home, VideophoneSecurity monitoring; High-speed scanner; Industrial testing
Interface：USB 2.0
Size：L*W:64x25mm
DGZX 12MP HD USB Camera Module
ProductTyp：DGZX-QQSJ-9010-V1.0
Active pixels：12MP 4032x3024
EFL/View Angel：Lenses are available upon request.
Format：YUV、MJPG
Frame rate：4032x3024: 15fps
Features：● Face recognition ● Mobile payment ● Smart home ● Drone ● Security monitoring ● Action camera ● Big screen all-in-one
Interface：USB 2.0
Size：L*W: 38*38mm (Lens Holder: 20X20mm)
DGZX 1MP HD 120FPS Global Shutter USB Camera Module
Product Nob.：DGZX-QQSJ-9056
Active pixels：1MP 1280*800
Sensor：OV9281(1/4")CMOS
View angle：D:210°H:192°V:113°/0.95mm ( Lens optional )
Frame rate：MJPG YUY2
Frame rate：1280x800:120fps 720P:120fps
Features & Applications：B&W global shutterimage sensor, support microphone,Industrial code scanners; Gesture Recognition; AR VR MR;Positional tracking; lris scanning; Machine vision .etc
Interface：USB2.0 ; Drive-free plug and play
Size：L*W: 38*38mm (PCB)
DGZX 1MP HD 720P FPC DVP camera module
Product Typ：DGZX-AS-HA508A41D2-28
Active pixels：1MP，1280x720
Sensor：SP1405(1/4")CMOS
Angle/EFL：70°/3.15mm(Lens optional)
Format：RAW
Frame rate：720p: 30 fps VGA: 45 fps
Features & application：● Full-frame, sub-sampled, cropped images in variousformats and parameters are programmable througha standard l2C interface. ● SecuritySurveillance 、Motion camera、Smart homeTraffic Sign Recognition 、Video Surveillance
Interface：DVP
Size：L:28mm
DGZX 1MP HD 720p Laptop Usb Camera Module
Product Typ：DGZX-QQSJ-9041
Active pixels：1MP 1280x720
Sensor：BF314ACS(1/4")CMOS
View angel/EFL：150°/1.7mm(Lens optional)
Output format：YUY、MJPG
Frame rate：720P :30 fps
Features：● Face recognition ● Laptops camera ● Smart home ● Drone ● Security monitoring ● Action camera ● Advertising machine
Interface：USB2.0 free drive plug&play
Size：L*W:60*8mm(PCBA)
