Wide Angle

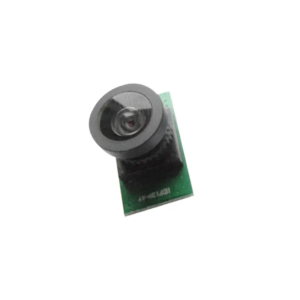

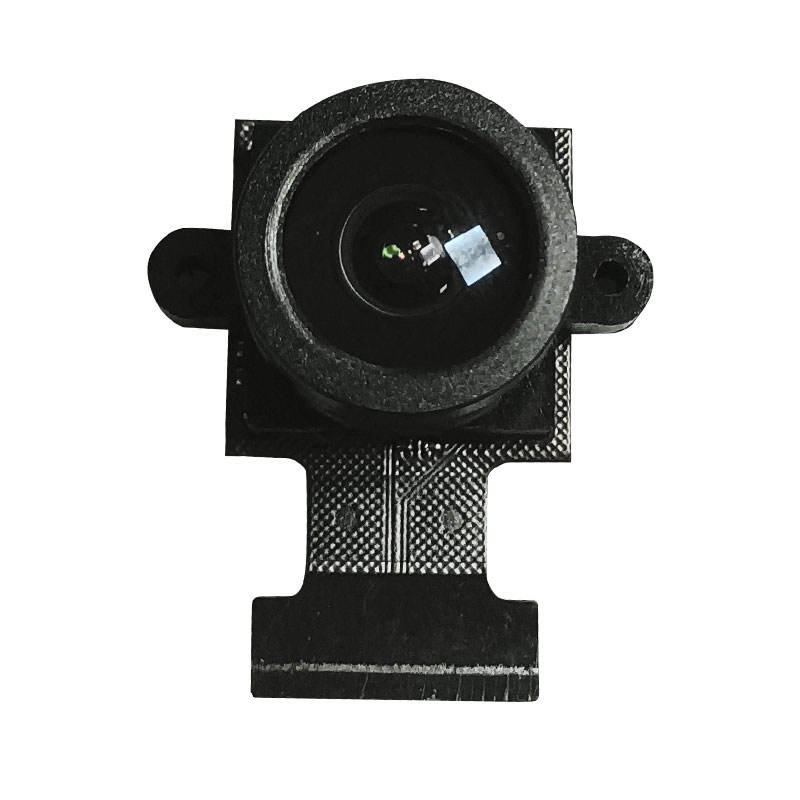

DGZX 0.3MP 60fps Wide Angle CVBS Analog Camera Module

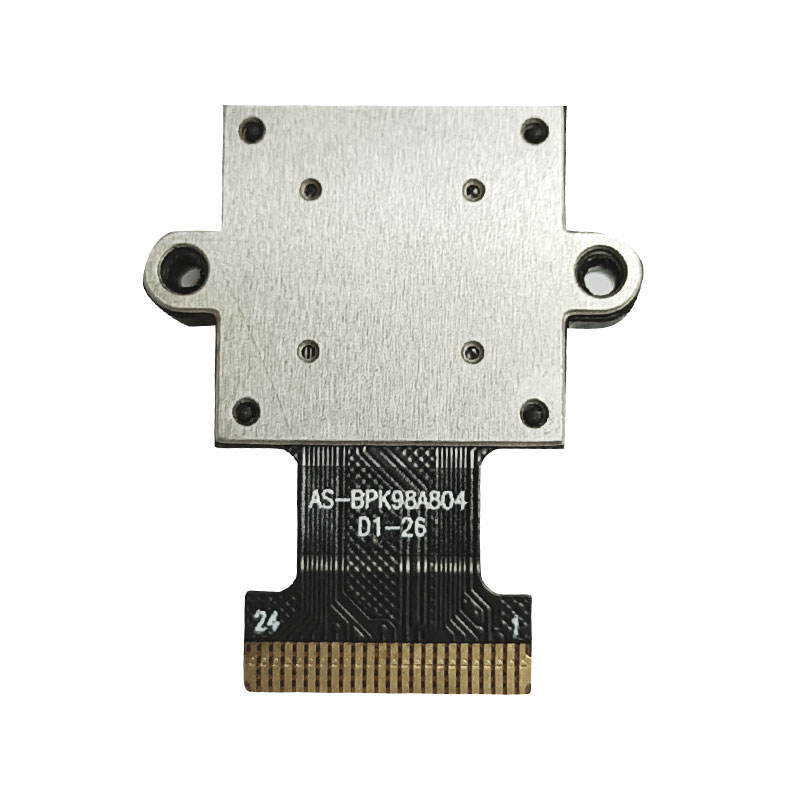

Product Typ：DGZX-AS-BPK98A804D1-26
Active pixels：3.4MP 720X480
Sensor：PC4089K(1/3″)CMOS
Angle/EFL：Customizable
Format：-CVBS(NTSC/PAL) -ITU-R.BT656/CVBS -YCbCr422/RGB565/RGB444/Bayer
Frame rate：60fps/ 60 fields/sec
Features & Applications：SecuritySurveillance; Visual doorbells ; lP CameraVisual Anchor Fishing; Car Rearview Monitor; Fish Finder
Interface：Parallel/CVBS
Size：L:26mm(24pin FPC)
RELATED PRODUCTS

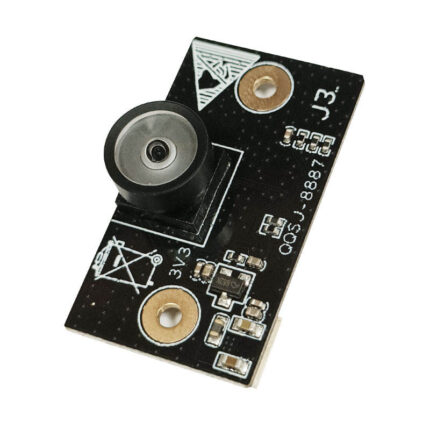

DGZX DVP 0.3MP HD Global Shutter 180FPS Camera Module
Product typ：DGZX-AS-BGSG8AH530D11-33
Active pixels：0.3MP 640Hx480V
Sensor：SC035HGS(1/6")CMOS
Angle：Customizable
Format：RAW MONO/RAW RGB
Frame rate：VGA: 180 fps
Features：● Bar code scanner ● Gesture Recognition ● 3D scanning ● Positional tracking ● lris scanning ● Augmented reality ● Virtual reality ● Biometrics ● Machine vision
Interface：DVP(customizable MIPI、LVDS)
Size：L:33mm(customizable)
Dogoozx is a personalized customization service provider for camera module heads. Customized designs are welcome!
