With ISP

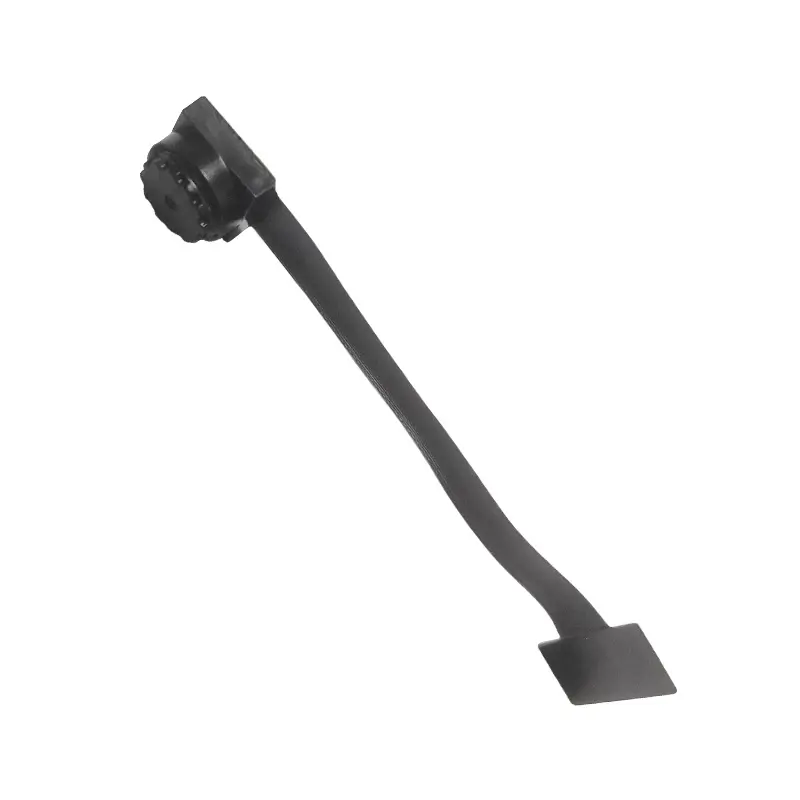

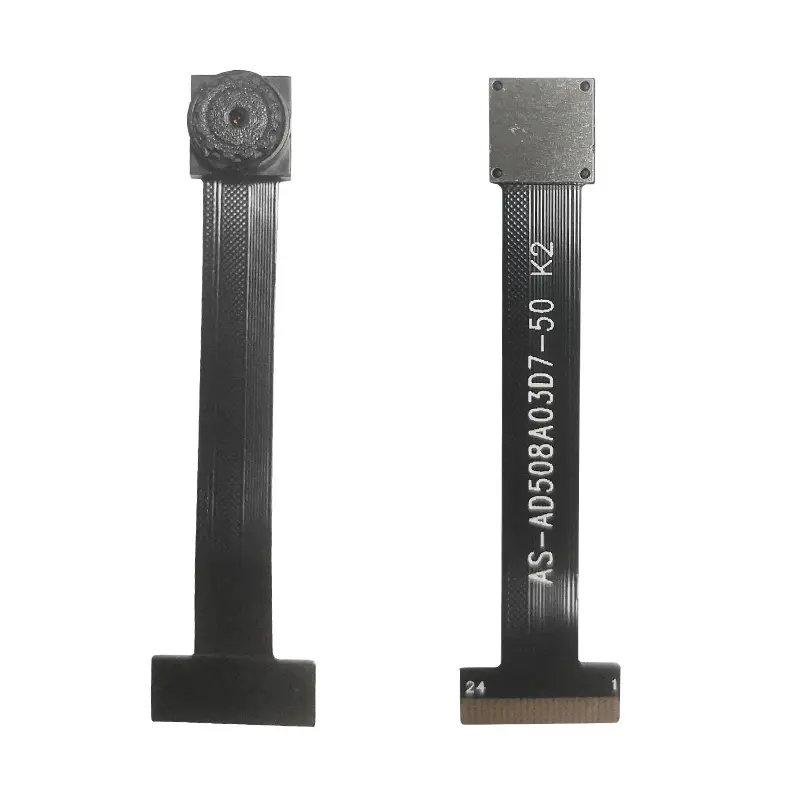

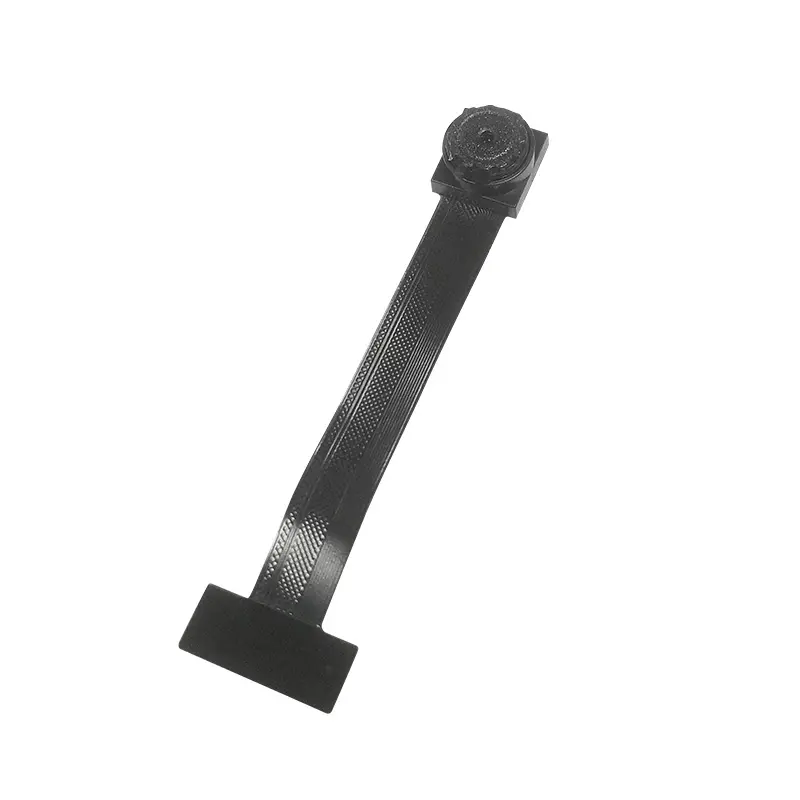

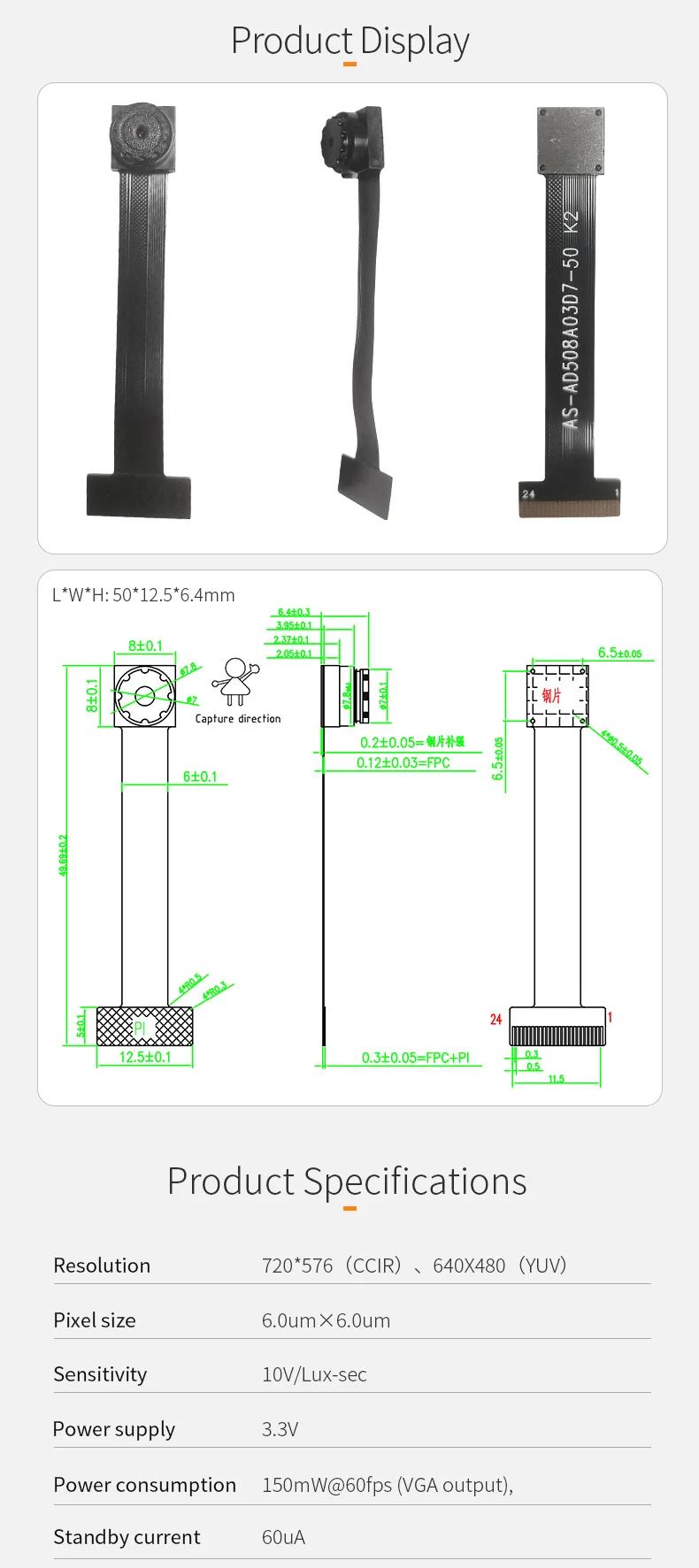

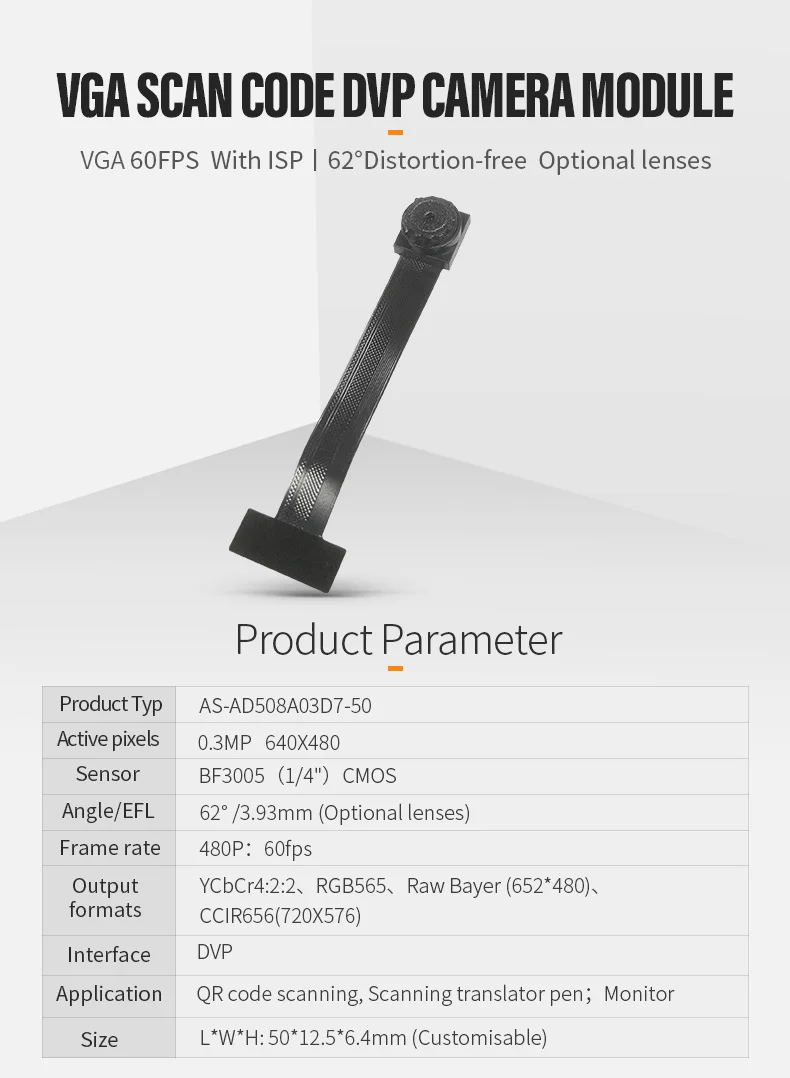

DGZX DVP 0.3MP ESP32 VGA 60fps ISP YUV BF3005 camera module
Product Typ：DGZX-AS-AD508A03D7-50
Active pixels：0.3MP 640X480
Sensor：BF3005(1/4″)CMOS
Angle/EFL：62°/3.93mm (Optional lenses)
Frame rate：480P:60fps
Outputformats：YCbCr4:2:2、RGB565、Raw Bayer (652*480)、CCIR656(720X576)
Interface：DVP
Application：QR code scanning, Scanning translator pen; Monitor

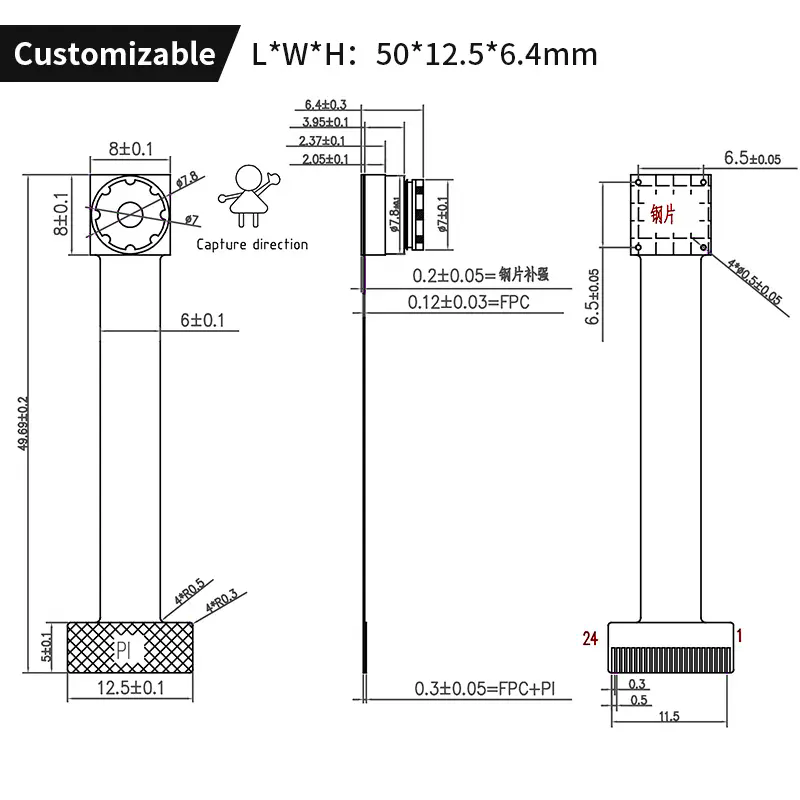

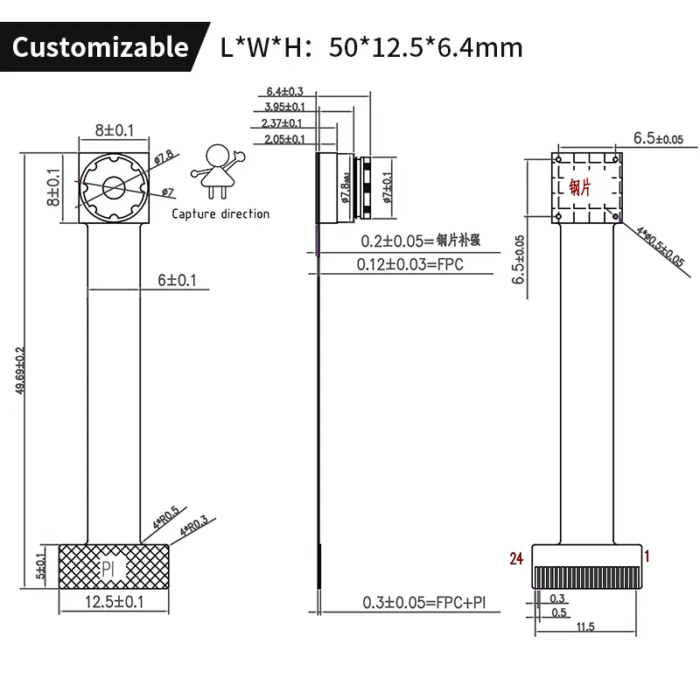

Size：L*W*H: 50*12.5*6.4mm(Customisable)
RELATED PRODUCTS
DGZX GC032A DVP 0.3MP ESP32 VGA 30 fps SPI Visual Headset Camera Module
DGZX-AS-BBA28A30D10-50
Active pixels：0.3MP 640x480 Sensor：GC032A(1/10”)CMOS
Format：YCbCr4:2:2、RGB565、Raw Bayer
Description：Visual Earphone Camera Module
Interface：DVP Pixel：30W Size：50*5*3mm(Customized)
Resolution：640x480 Frame Rate：30FPS
System compatible：Windows Android Linux
Sensor Type：COMS Lens：Optical
Output Format：YCbCr4:2:2/RGB565/Raw Bayer
