With ISP

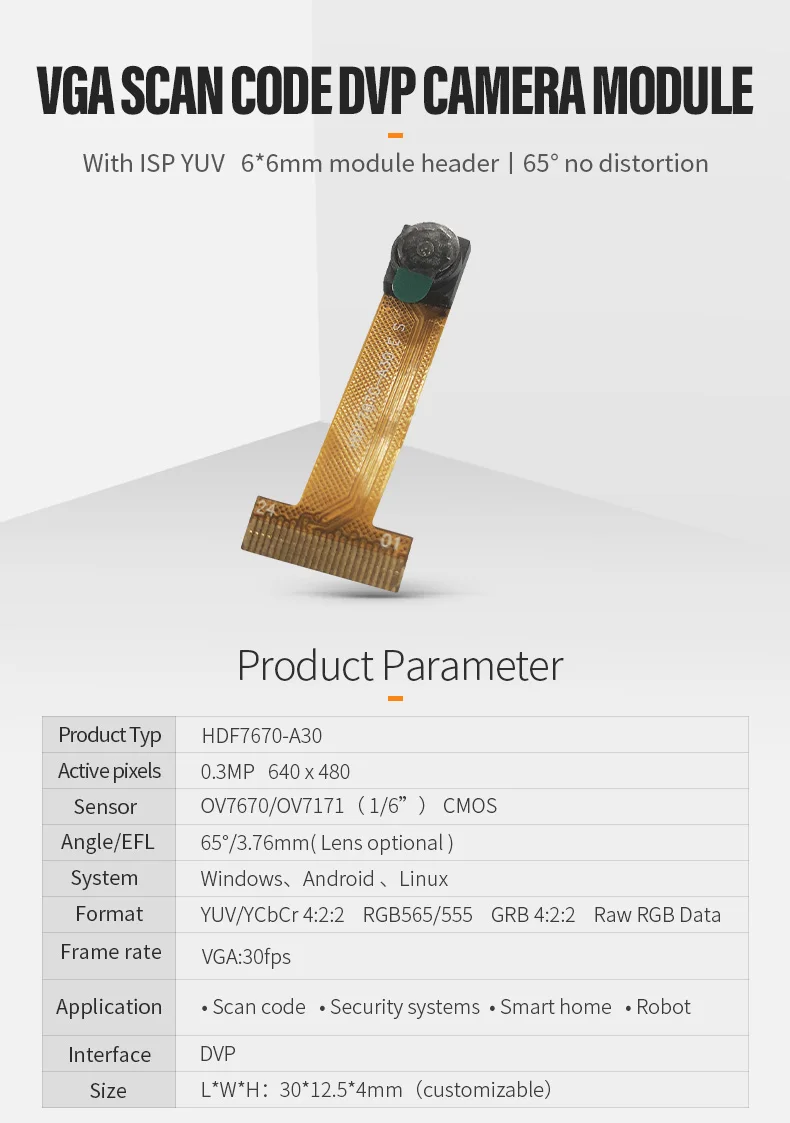

DGZX DVP 0.3MP VGA 480P OV7670 with ISP YUV camera module
Product Typ：DGZX-HDF7670-A30

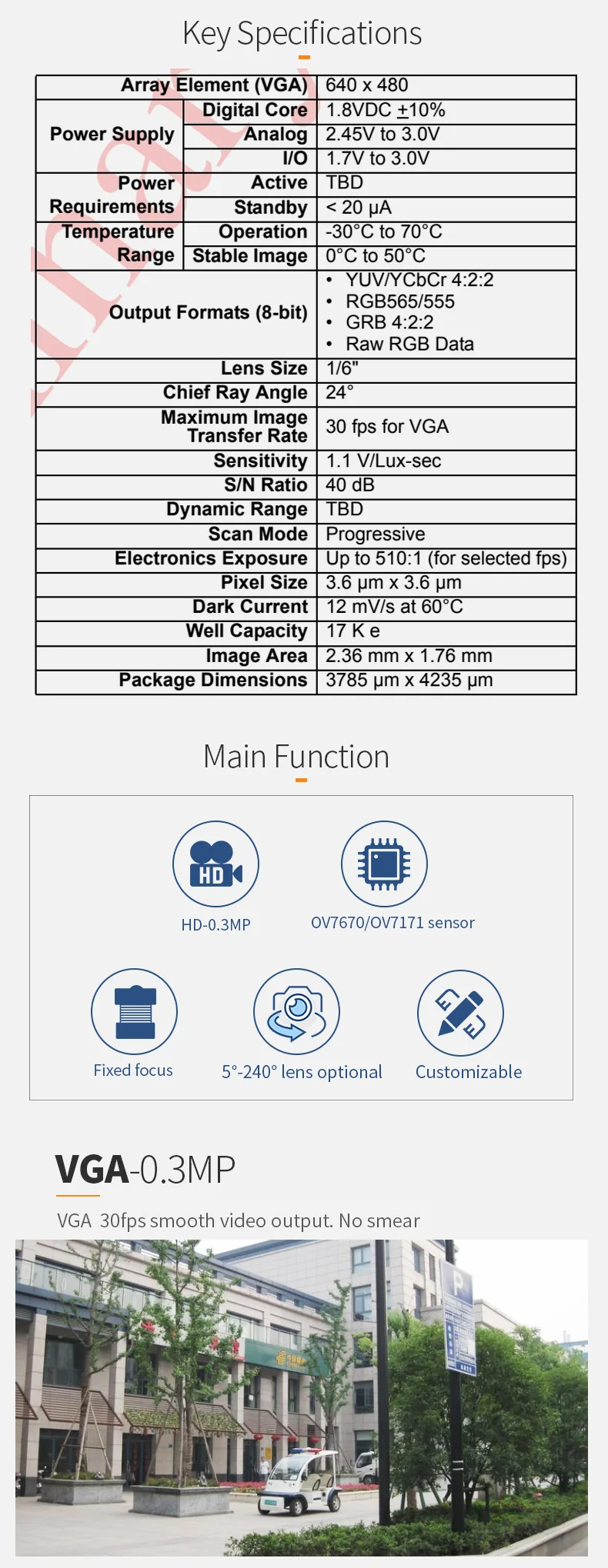

Active pixels：0.3MP 640×480
Sensor：OV7670/0V7171(1/6”)CMOS
Angle/EFL：65°/3.76mm( Lens optional)
System：Windows、Android、Linux
Format：YUV/CbCr4:2:2 RGB565/555GRB 4:2:2Raw RGB Data
Frame rate：VGA:30fps
Application：● Scan code ● Security systems ● Smart home ● Robot
Interface：DVP

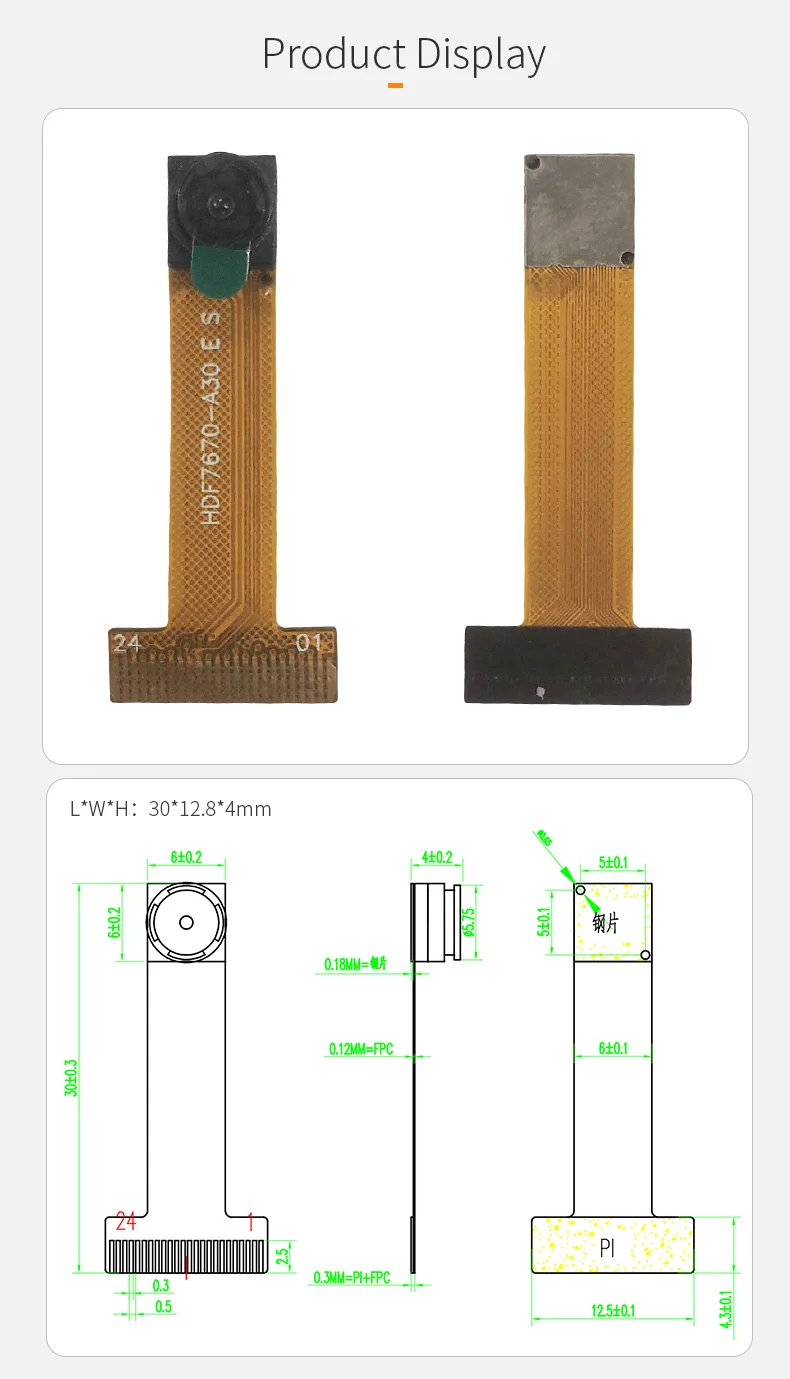

Size：L*W*H:30*12.5*4mm(customizable)
RELATED PRODUCTS
DGZX-AS-AB828A30D29-114 GC0328 0.3MP DVP camera module 120 degrees distortion-free HD support STM32
Image Sensor:GC0328 Pixel:30W Frame rate:30FPS
Interface type:DVP Sensor Size:1/6.5-inch Network:Ip, SDK
Video Compression Format:H.264, RAW, JPEG, YUV
System compatible:Linux, Windows , Android
Special Features:NIGHT VISION, face recognition, Support ESP32, Low Light, Low illumination
Customized support:Online technical support, Customized logo, OEM, ODM, Software reengineering
DGZX-HDF2010-A46 2MP DVP camera module MI2010 MT9D111 sensor, wide angle YUV with ISP, infrared night vision
Infrared night vision camera module, Large field of view wide angle camera module, Dvp Camera Module
Special Features:NIGHT VISION, face recognition
Network:SDK Video Compression Format:RAW
Image Sensor:MI2010 MT9D111 Interface:DVP
Module Dimensions:46*14*24mm(L*W*H)
HD:2K 1080P Pixel:1600x1200
Frame rate:15fps Lens Size:1/3.2 inch
Color space / compression:RAW RAW
System compatible:Windows Android Linux
Dogoozx is a personalized customization service provider for camera module heads. Customized designs are welcome!
