low lightwide angle

DGZX-AS-AB828A30D29-114 GC0328 0.3MP DVP camera module 120 degrees distortion-free HD support STM32缩略图

Click to enlarge

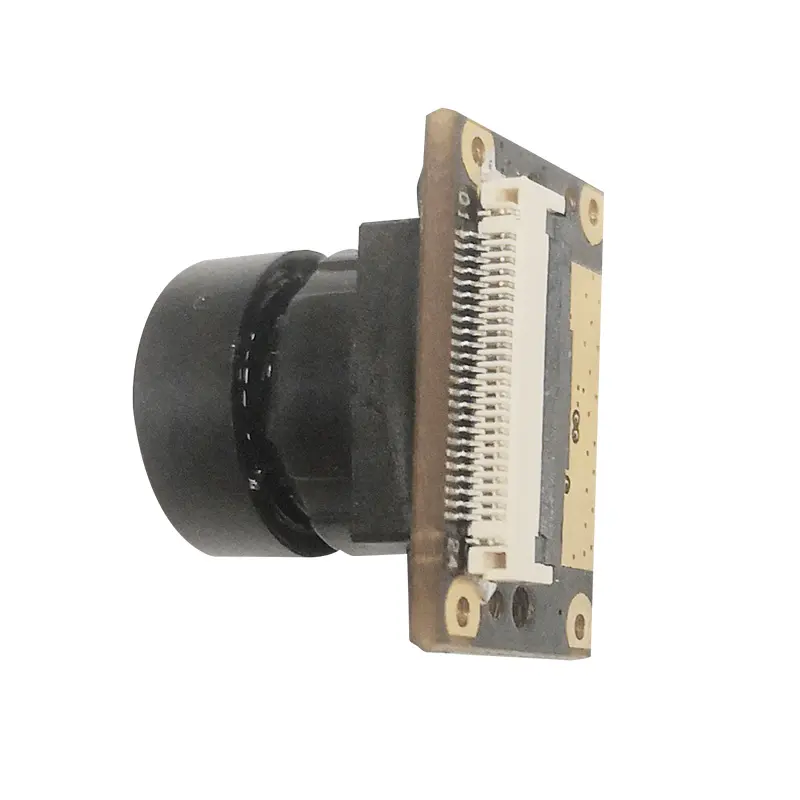

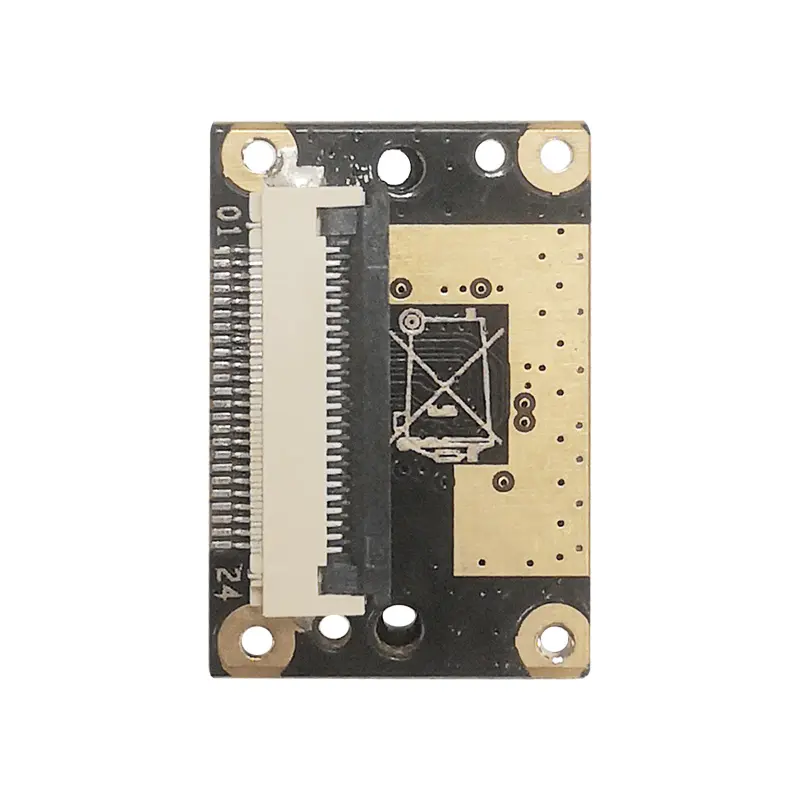

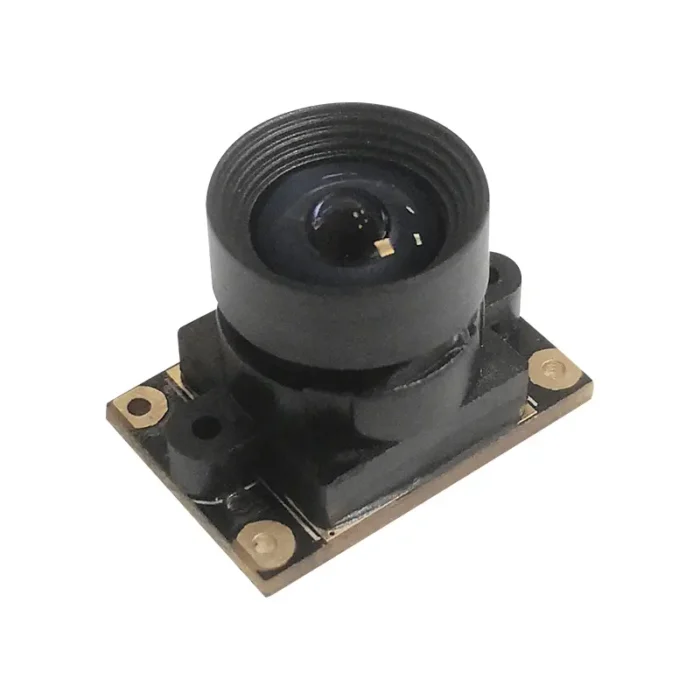

DGZX-AS-AB828A30D29-114 GC0328 0.3MP DVP camera module 120 degrees distortion-free HD support STM32

Image Sensor:GC0328 Pixel:30W Frame rate:30FPS

Interface type:DVP Sensor Size:1/6.5-inch Network:Ip, SDK

Video Compression Format:H.264, RAW, JPEG, YUV

System compatible:Linux, Windows , Android

Special Features:NIGHT VISION, face recognition, Support ESP32, Low Light, Low illumination

Customized support:Online technical support, Customized logo, OEM, ODM, Software reengineering

Pixel	0.3MP Camera Module
FUNCTION	low light, wide angle

Compare

Add to wishlist

Categories: Dvp Camera Module, Large field of view wide angle camera module, Low illumination camera module Tags: 0.3MP camera, DVP camera, STM32 camera

Reviews

There are no reviews yet.

Be the first to review “DGZX-AS-AB828A30D29-114 GC0328 0.3MP DVP camera module 120 degrees distortion-free HD support STM32”

RELATED PRODUCTS

color cameraGlobal Shutter

Compare

DGZX SC035HGS HD 0.3MP VGA 180fps B&W/Color Global Exposure DVP Camera Module

Dvp Camera Module

DGZX-AS-BGSG8AH530D11-33 Active pixels：0.3MP 640Hx480V Sensor：SC035HGS(1/6")CMOS Angle：Customizable Format：RAW MONO/RAW RGB Frame rate：VGA: 180 fps Interface：DVP(customizable MIPI、LVDS) Size：L:33mm(customizable)

Add to wishlist

Quick view

Global Shutter

Compare

DGZX DVP 0.3MP global shutter SC031GS VGA high-speed 180 frame black and white camera module

Dvp Camera Module

DGZX-AS-AASG8A130D1-24 Active pixels：0.3MP 640HX480V Sensor：SC031GS(1/6")CMOS Angle/EFL：Lens optional Frame rate：640Hx480V@10bit 180fps Interface：DVP Size：L: 24mm (customizable)

Add to wishlist

Quick view

-20%wide angle

Compare

DGZX-AS-DBT38AA02M3-25 GC20A3T 2MP wide angle cmos AI camera module

AI Camera Module, Large field of view wide angle camera module, Mipi(CSI) Camera Module

Image Sensor:GC20A3T System compatible:Linux, Windows , Android Interface:MIPI Pixel:2MP 1920x1080 HD:1080P Frame rate:30fps Certification:RoHS Lens Size:1/2.9 inch Module Dimensions:25mm(L) Color space / compression:RAW

Add to wishlist

Add to cart

Quick view

Infrared Night Visionwide angle

Compare

DGZX-HDF2010-A46 2MP DVP camera module MI2010 MT9D111 sensor, wide angle YUV with ISP, infrared night vision

Infrared night vision camera module, Large field of view wide angle camera module, Dvp Camera Module

Special Features:NIGHT VISION, face recognition Network:SDK Video Compression Format:RAW Image Sensor:MI2010 MT9D111 Interface:DVP Module Dimensions:46*14*24mm(L*W*H) HD:2K 1080P Pixel:1600x1200 Frame rate:15fps Lens Size:1/3.2 inch Color space / compression:RAW RAW System compatible:Windows Android Linux

Add to wishlist

Quick view

Low Illuminationnight vision

Compare

DGZX-HDF25-A50 GC032A GC0308 GC0309 OV7675 OV7725 camera module 0.3MP micro macro night vision low illumination

Low illumination camera module, Starlight night vision camera module, Mipi(CSI) Camera Module

With 0.3MP pixels and miniature size, it is suitable for various application scenarios that require small, low power consumption, and high-quality image capture.

Add to wishlist

Quick view

Dogoozx is a personalized customization service provider for camera module heads. Customized designs are welcome!

Recent articles

Sharing useful information: What is a camera module?

Raspberry Pi launches camera module: opening a new era of vision-based AI applications

Dogoozx explains for you: How do USB cameras complete shooting?

About Dogoozx

Join The club

Terms of Service
Shipping instructions
Return and exchange terms
Product returns
Purchase history

No account yet?

Create an Account

GC0328 0.3MP DVP camera module, which has 120 degree distortion-free HD characteristics and supports STM32 microcontrollers

GC0328 image sensor

GC0328 is a 0.3MP (300,000 pixels) DVP camera module using the GC0328 image sensor. The module has a wide viewing angle of 120 degrees while maintaining the distortion-free HD characteristics of the image, making it very suitable for embedded systems and machine vision applications that have high requirements for image quality and viewing angle.

High-resolution image sensor

The GC0328 image sensor is used to provide clear and delicate image effects.

Wide viewing angle

The 120-degree viewing angle can capture a wider range of scenes and is suitable for monitoring, security, and machine vision.

Distortion-free high-definition image

Advanced image processing technology ensures that the image remains high-definition and distortion-free at a wide viewing angle.

DVP interface

Supports the digital video port (DVP) interface standard, which is convenient for connection and data transmission with microcontrollers such as STM32.

Strong compatibility

Supports a variety of operating systems and platforms, such as Linux, Windows, etc., which is convenient for secondary development and integration.

stm32 camera module

The camera module supports the STM32 microcontroller and can be seamlessly connected to the STM32 through the DVP interface. The STM32 microcontroller has powerful processing capabilities and rich peripheral interfaces, which can easily capture, process and transmit images. At the same time, STM32 also supports a variety of communication protocols and interfaces, which is convenient for data exchange and communication with other systems.

Application scenarios

Embedded system

Can be used for image acquisition and processing in various embedded systems, such as smart home, smart security, etc.

Machine Vision

Can be used in image recognition, object detection, tracking and measurement in machine vision applications.

Industrial Automation

Can be used in image detection and quality control on industrial automation production lines.

Packaging and delivery

Selling Units:Single item

Single package size:XX cm

Single gross weight:kg

Lead time

Quantity (pieces)	1 – 5	6 – 500	> 500
Lead time (days)	7	18	To be negotiated

Customization

Customized logo

Min. order: 3 piece

Customized packaging

Min. order: 3 piece

Graphic customization

Min. order: 3 piece

For more customization details, message supplier
