Global ShutterHD

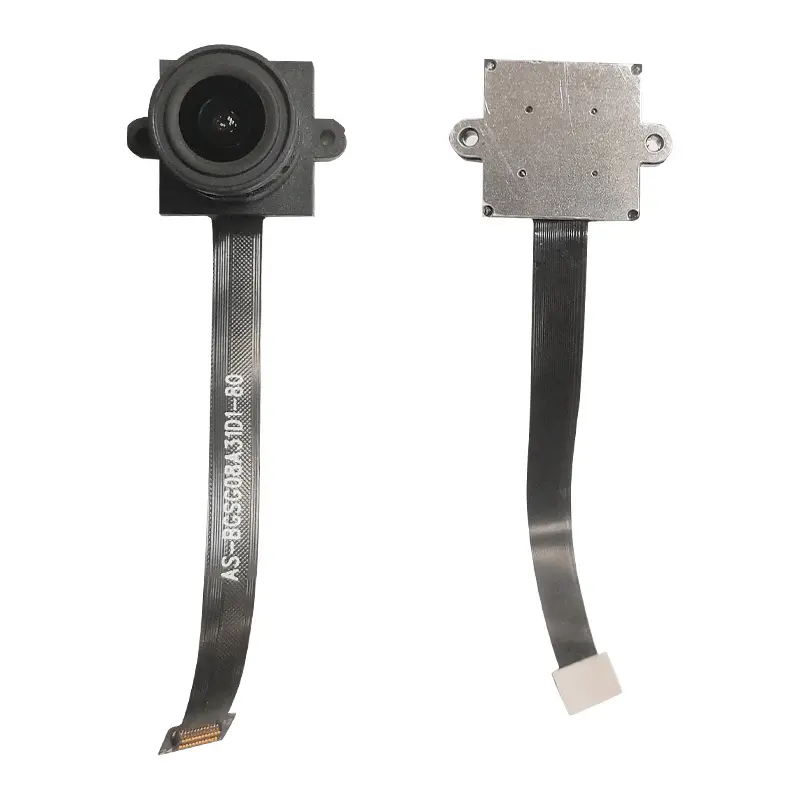

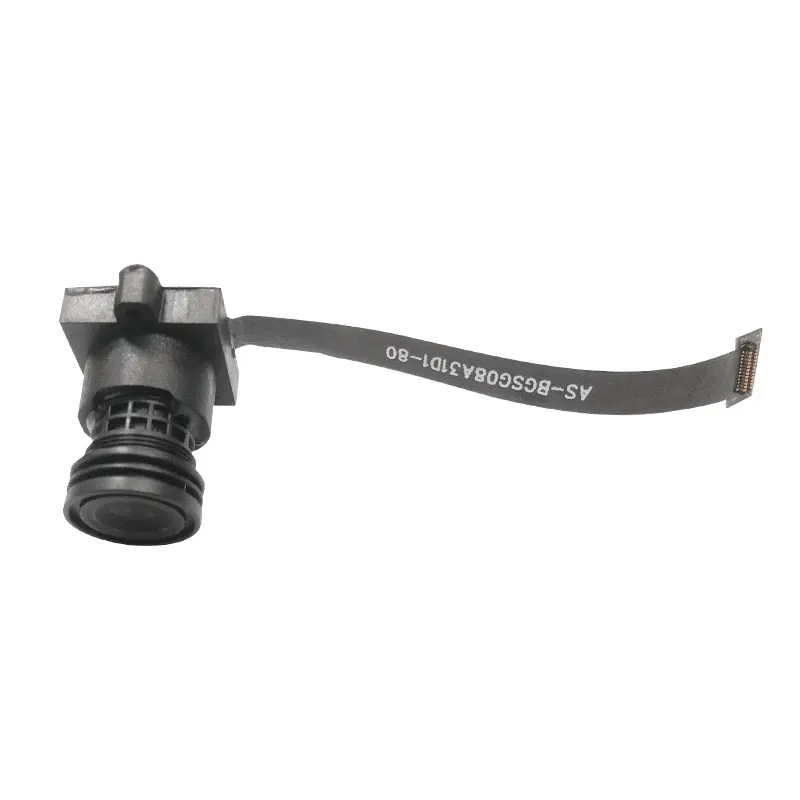

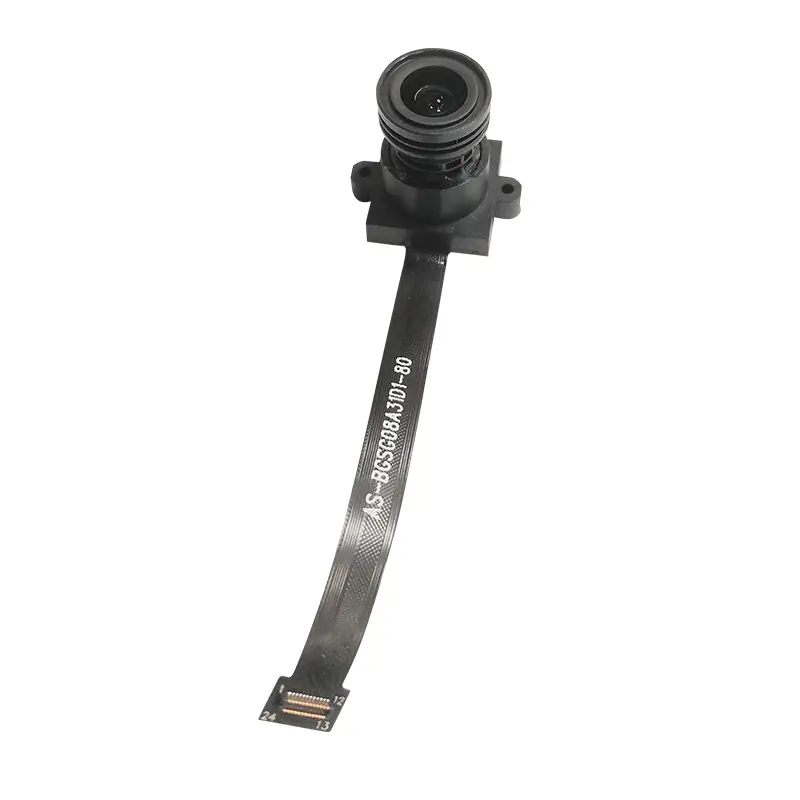

DGZX HD 1.3MP DVP 240fps global-shutter camera module

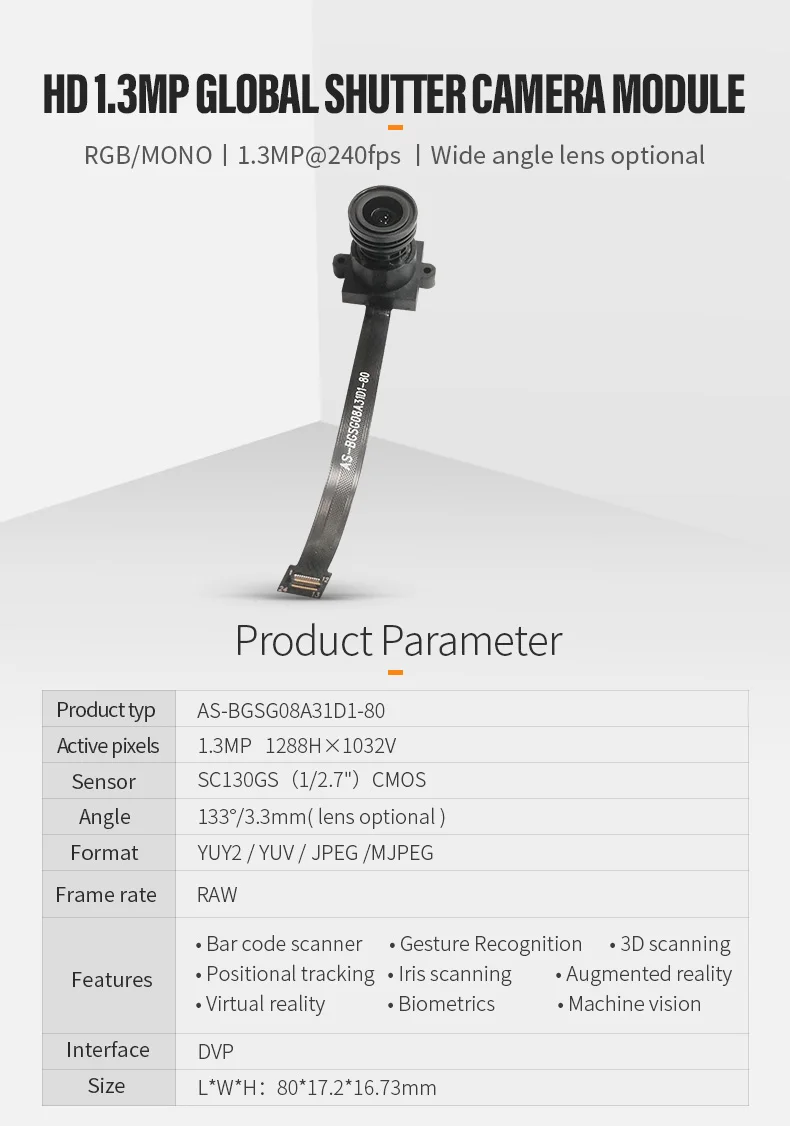

Product typ：DGZX-AS-BGSG08A31D1-80
Active pixels：1.3MP 1288Hx1032V
Sensor：SC130GS(1/2.7″)CMOS
Angle：133°/3.3mm( lens optional )
Format：YUY2 /YUV/JPEG /MJPEG
Frame rate：RAW
Features：● Bar code scanner ● Gesture Recognition ● 3D scanning ● Positional tracking ● lris scanning ● Augmented reality ● Virtual reality ● Biometrics ● Machine vision
Interface：DVP

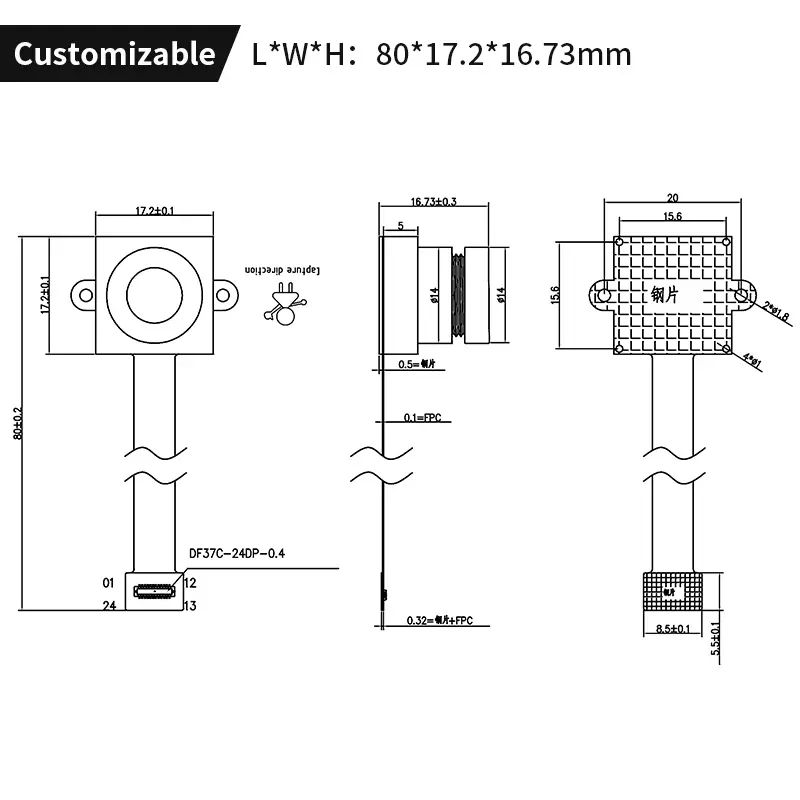

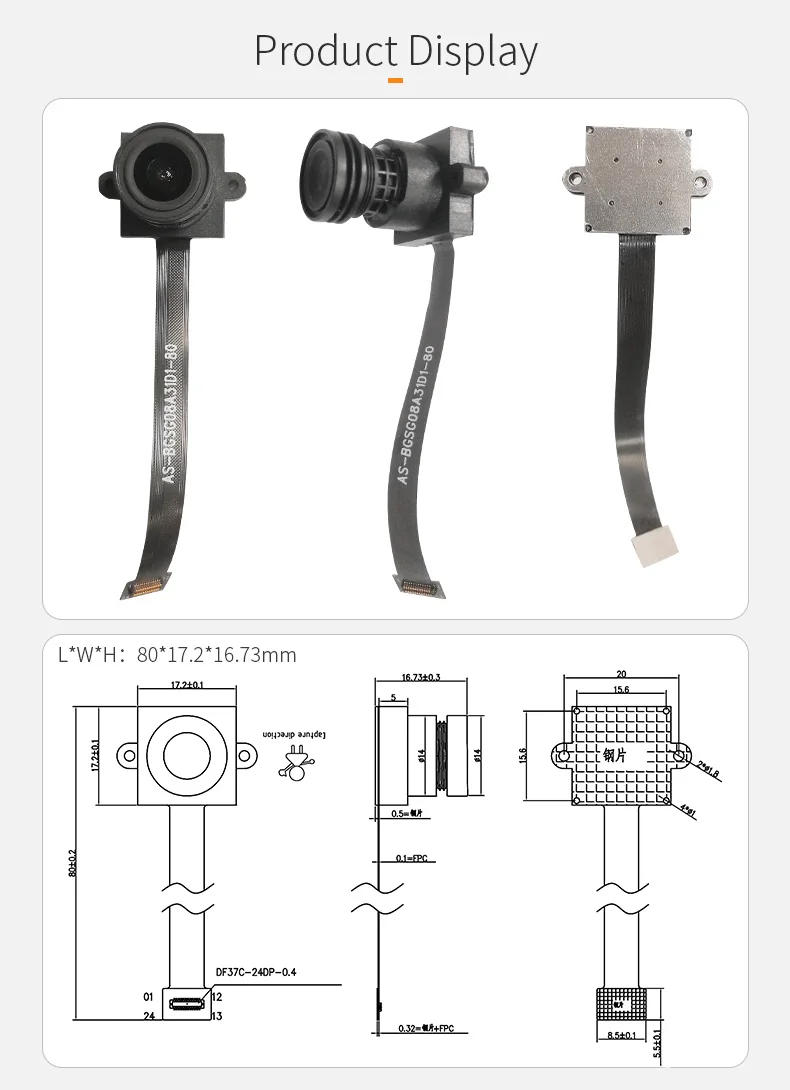

Size：L*W*H:80*17.2*16.73mm
