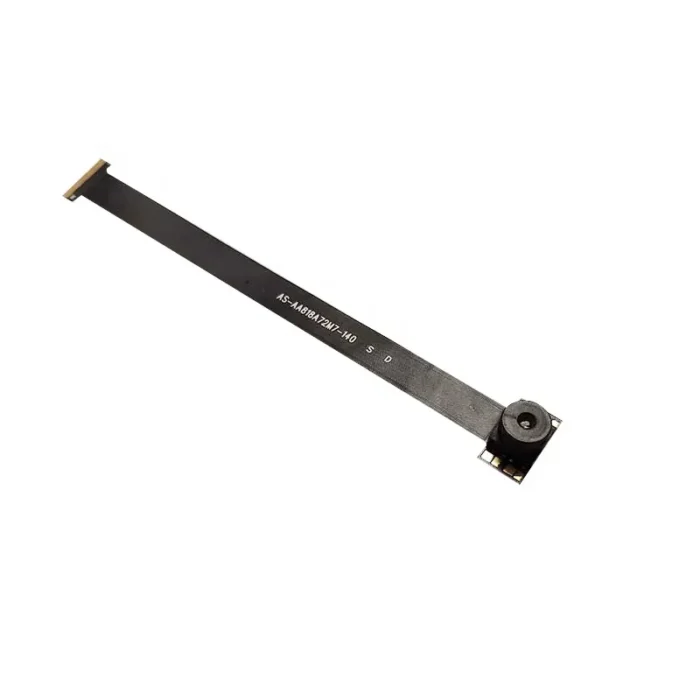

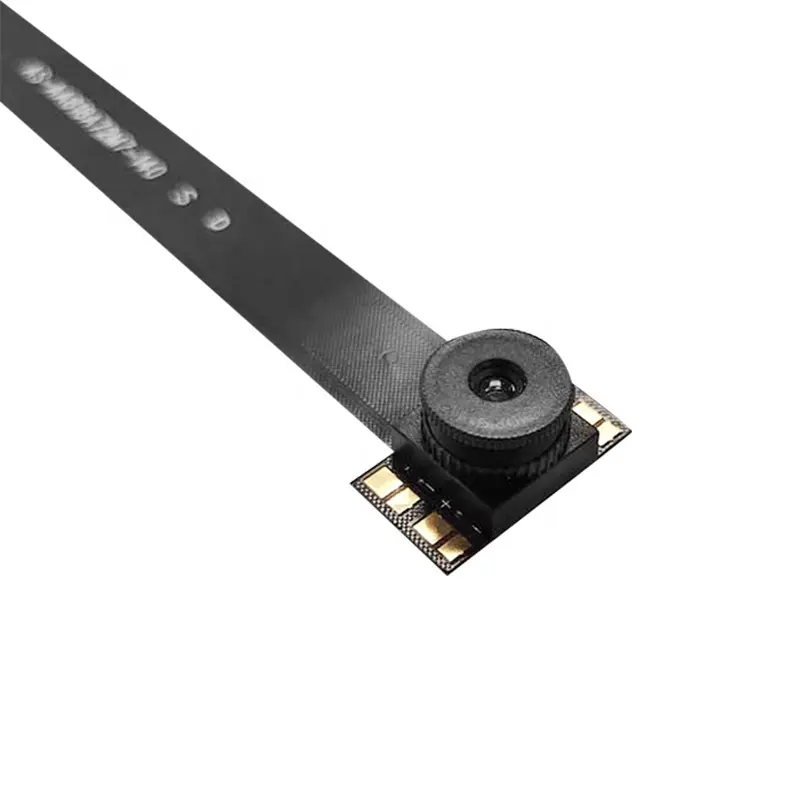

DGZX-AA818A72M7-140 OV2718 sensor 2MP DVP/ CSI-2/MIPI camera module

The DGZX-AA818A72M7-140 uses a 2MP OV2718 image sensor and has night vision function.

High resolution:
The 2MP OV2718 image sensor provides high-resolution image capture capabilities to ensure clear and delicate images.
Multiple interface types:
Supports multiple interfaces such as DVP, CSI-2, MIPI, etc., which is convenient for connection with different devices and improves compatibility.
Night vision function:
The module is built-in or can be used with infrared filter switching, infrared LED lights and other components to achieve night vision function, ensuring that clear images can be captured even in low light conditions.
Low power consumption:
The OV2718 sensor has low power consumption characteristics, which helps to extend the battery life of the device.
High sensitivity:
The sensor has high sensitivity and can provide excellent image quality under various lighting conditions.

Key attributes
Industry-specific attributes
Function：Wide Angle, NIGHT VISION, Built-in Mic, Human Motion Tracking, Motton Detection, Video Surveilance, Vided Recarding, Machine Vision, High Color Reproduction, High Dynamic Range, Action Recording, Video conference, Bar Code reading, Scanning, Snapshots, Material detection, Medical devices, Face Recognition, monitoring equipment, smart home
Data Storage Options：Full HD

Other attributes
Model Number：DGZX-AA818A72M7-140
Warranty：1 Year
Special Features：NIGHT VISION, Face Recognition, Support ESP32, Low Light, Low illumination
Network：Ip, SDK
Video Compression Format：H.264, RAW, JPEG, YUV
Application：Indoor, Outdoor
Customized support：Online technical support, Customized logo, OEM, ODM, Software reengineering
Dimension：customization
Pixel：2MP
System compatible：Linux, Windows , Android
Image Sensor：OV2718
Frame rate：30FPS
Warranty：1 Year
Application：Indoor, Outdoor
Customized support：Online technical support, OEM, ODM
Interface type：MIPI
Sensor Size：1/2.9-inch
Packaging and delivery
Selling Units:Single item
Single package size:10X10X10 cm
Single gross weight:0.500 kg

Lead time
Quantity (pieces)      1 – 5        6 – 500        > 500
Lead time (days)       7             18                To be negotiated

Customization
Customized logo
Min. order: 3 piece
Customized packaging
Min. order: 3 piece
Graphic customization
Min. order: 3 piece
For more customization details, message supplier
