night vision

DGZX-AS-AB358A02M17 GC2053 2MP 1080P MIPI CMOS camera module缩略图

Click to enlarge

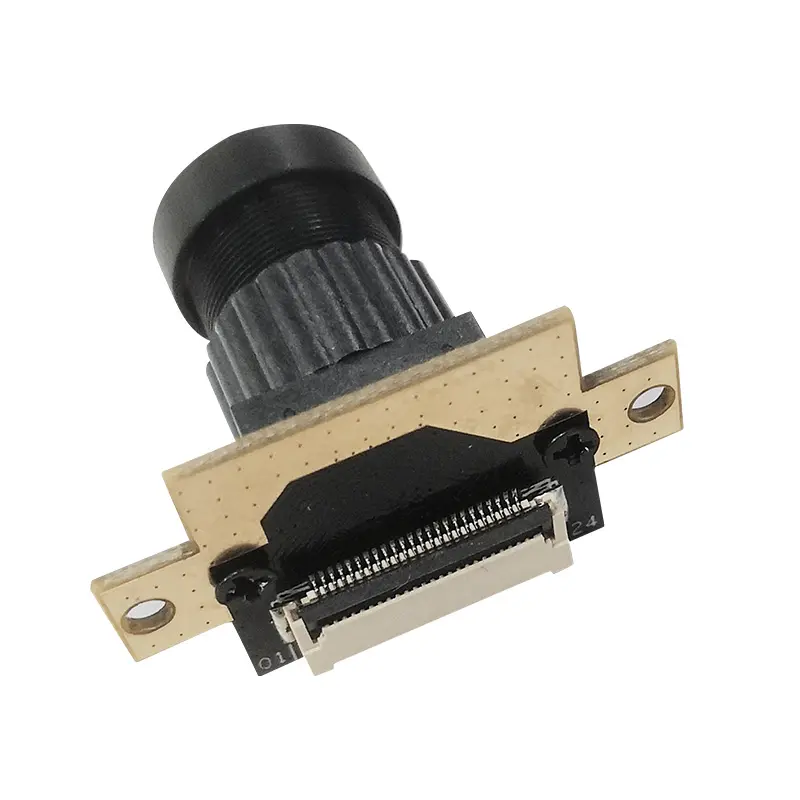

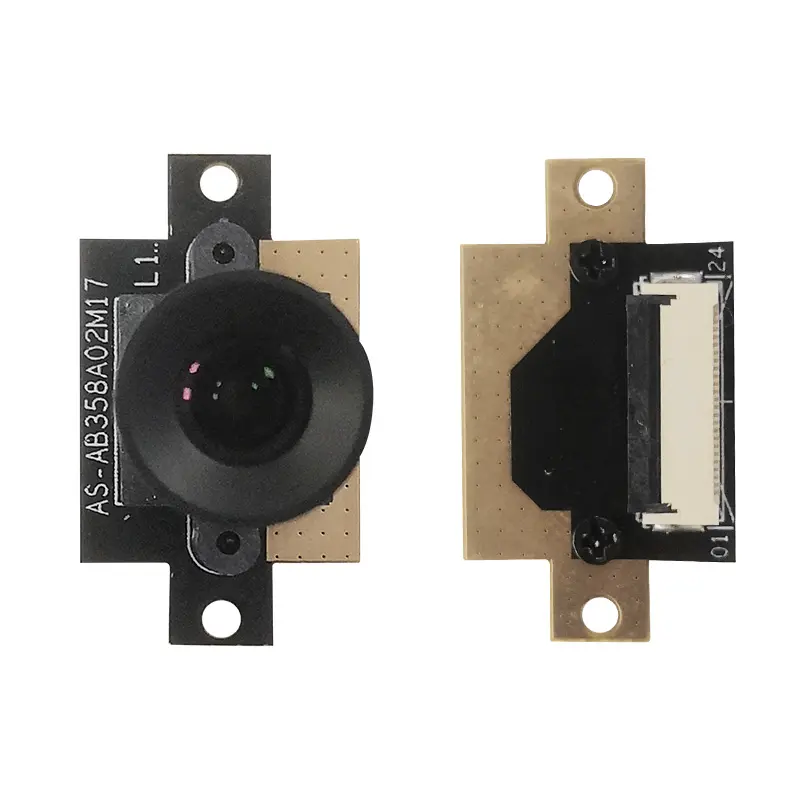

DGZX-AS-AB358A02M17 GC2053 2MP 1080P MIPI CMOS camera module

Image sensor:GC2053 Optical Format:1/2.9-inch Pixel size:2.8 um* 2.8um

Pixel:1080 Frame rate:30fps Network:SDK

Video Compression Format:H.264 Resolution:1920*1080

Interface type:MIPI （customizable DVP USB ）

System compatible:Windows Android Linux Color:RAW Bayer

Certification:RoHS

Pixel	2MP Camera Module
FUNCTION	night vision

Compare

Add to wishlist

Reviews

There are no reviews yet.

Be the first to review “DGZX-AS-AB358A02M17 GC2053 2MP 1080P MIPI CMOS camera module”

RELATED PRODUCTS

wide anglewith ISP

Compare

DGZX MI2010/MT9D111 HD 2MP DVP wide angle camera module with ISP JPEG YUV

Dvp Camera Module

DGZX-AS-AE018A02D1-114

Image Sensor：MI2010 Pixel：2MP

Lens Size：1/3.2 inch full resolution：1600*1200

pixel size：2.8um*2.8um Function：Wide Angle

Data Storage Options：Full HD

Color space / compression：YUV/JPEG/ RAW

System compatible：Windows Android Linux

Certification：RoHS Interface：DVP

Module Dimensions：114mm(L)

Add to wishlist

Quick view

HDnight vision

Compare

DGZX OV2710 2MP DVP Distortion-free 1080P HD Dynamic Night Vision Sports Camera Module

Dvp Camera Module

DGZX-HDF2715-A25-V1.0 Active pixels：2MP 1920x1080 Sensor：OV2732(1/4")CMOS Angle：Lens optional Format：8-/10-bit RAW RGB Frame rate：1080p:30fps 720p:60fps VGA:120fps QVGA: 240 fps Size：L*W:25*10mm(customizable)

Add to wishlist

Quick view

Compare

DGZX SC2336 2MP HD 1080P MIPI DVP distortion-free camera module

Dvp Camera Module, Mipi(CSI) Camera Module

DGZX-AS-AG638A32M2-50 Active pixels：2MP 1920x1080 Sensor：SC2336(1/3")CMOS EFL/View Angel：Customizable Format：RAW RGB Frame rate：1080P: 30 fps Interface：MIPl(customizable DVP USB Camera module ) Size：L: 50mm(customizable )

Add to wishlist

Quick view

-3%

Compare

DGZX-8890 IMX377 12Mp/4K MIPI CMOS Camera Module Surveillance Device Smartphone and Screen Imaging

Mipi(CSI) Camera Module

Supervising Equipment Smart Phones And Screen imaging IMX377 4KP MIPI 12Mp CMOS Camera Modules.

Add to wishlist

Add to cart

Quick view

-17%

Compare

DGZX-HDF7725-A90 OV7725 0.3MP 60fps focus DVP camera module

Dvp Camera Module, Esp32 Camera Module

Sensor: OV7725 Pixels: 300,000 Focal length: fixed focus Length: 90mm Frame rate: 60fps Resolution: Support VGA (640x480) resolution Interface: DVP interface Features: high performance, high compatibility

Add to wishlist

Add to cart

Quick view

Dogoozx is a personalized customization service provider for camera module heads. Customized designs are welcome!

Recent articles

Sharing useful information: What is a camera module?

Raspberry Pi launches camera module: opening a new era of vision-based AI applications

Dogoozx explains for you: How do USB cameras complete shooting?

About Dogoozx

Join The club

Terms of Service
Shipping instructions
Return and exchange terms
Product returns
Purchase history

No account yet?

Create an Account

This is a high quality video surveillance camera module that uses GC2053 MIPI CMOS sensor, supports 2MP resolution, 30fps frame rate, and 1080P HD video output

GC2053 sensor

GC2053 is a high quality CMOS image sensor designed for applications such as security cameras, digital cameras, and mobile phone cameras.
The sensor integrates a 1920H×1080V pixel array, which can provide excellent image quality and low power performance.

2mp 1080p camera

The GC2053 camera module supports 2MP (2 megapixel) resolution, which is 1920×1080 pixels, also known as 1080P HD resolution.
The module can capture and transmit HD video at 30fps (frames per second), providing a smooth and clear video experience.

MIPI interface customizable DVP USB interface

The GC2053 supports RAW10 and RAW8 data formats and has a multi-functional interface to meet the needs of multiple application scenarios. In addition to the standard MIPI interface, the GC2053 camera module also supports custom DVP and USB interfaces.
This flexibility enables the module to be more widely used in various devices and systems to meet the needs of different users.

The GC2053 camera module has become an ideal choice for developers when designing security cameras, digital cameras, smartphones and other products with its high performance, flexibility and wide range of application scenarios.

Packaging and delivery

Selling Units:Single item

Single package size:10X10X10 cm

Single gross weight:0.500 kg

Lead time

Quantity (pieces)	1 – 5	6 – 500	> 500
Lead time (days)	7	25	To be negotiated
