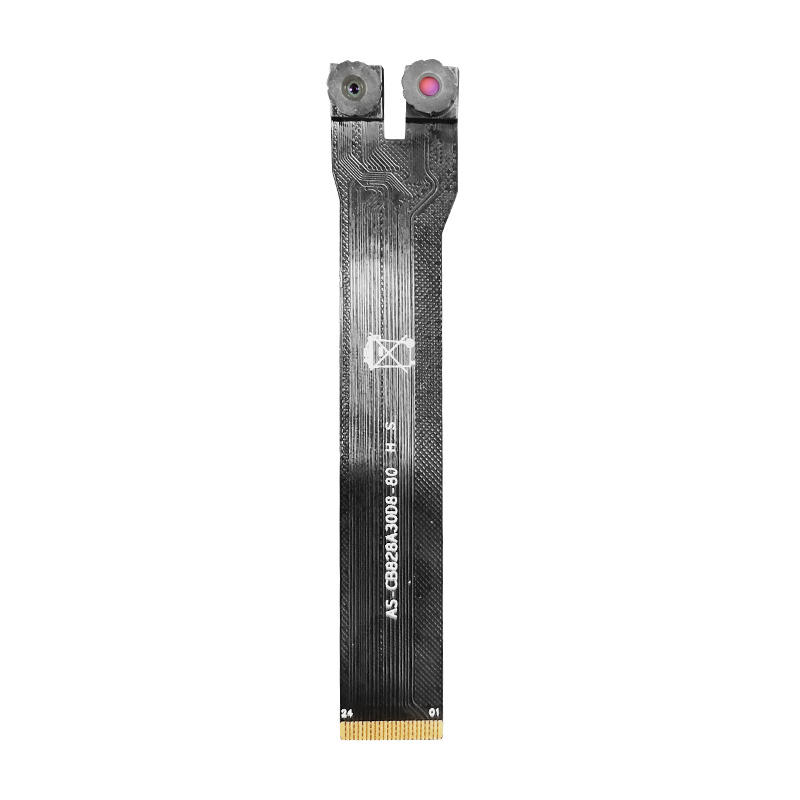

DGZX 0.3MP DVP HD VGA Binocular Camera Module
Product Typ：DGZX-AS-CB828A30D8-80
Active pixels：0.3MP 640Vx480H
Sensor：GC0328 (1/6.5″)CMOS
Angle/EFL：60/3.76mm (customizable)
Format：YUY2 /MJPEG
Frame rate：YUV2:640*480/30FPS
Features：● Face recognition ● Supervising equipment ● Home supplies
Interface：DVP(Customizable USB camera module)

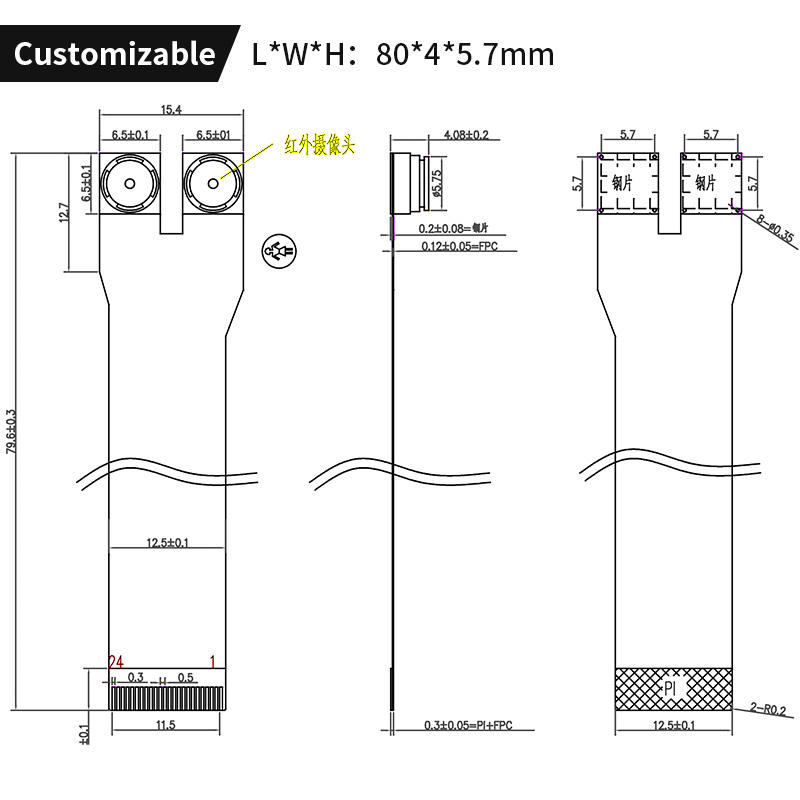

Size：L*W*H:80*15.4*4mm(customizable)
RELATED PRODUCTS
DGZX GC032A DVP 0.3MP ESP32 VGA 30 fps SPI Visual Headset Camera Module
DGZX-AS-BBA28A30D10-50
Active pixels：0.3MP 640x480 Sensor：GC032A(1/10”)CMOS
Format：YCbCr4:2:2、RGB565、Raw Bayer
Description：Visual Earphone Camera Module
Interface：DVP Pixel：30W Size：50*5*3mm(Customized)
Resolution：640x480 Frame Rate：30FPS
System compatible：Windows Android Linux
Sensor Type：COMS Lens：Optical
Output Format：YCbCr4:2:2/RGB565/Raw Bayer
DGZX MI2010/MT9D111 HD 2MP DVP wide angle camera module with ISP JPEG YUV
DGZX-AS-AE018A02D1-114
Image Sensor：MI2010 Pixel：2MP
Lens Size：1/3.2 inch full resolution：1600*1200
pixel size：2.8um*2.8um Function：Wide Angle
Data Storage Options：Full HD
Color space / compression：YUV/JPEG/ RAW
System compatible：Windows Android Linux
Certification：RoHS Interface：DVP
Module Dimensions：114mm(L)
DGZX NT99141 Dvp 1MP 720P HD Mini Sensor PCB Board for Robotic Machine Vision MCU ESP32 Camera Module
DGZX-HDF99141-38x38
Sensor Type：1/4" NT99141 Resolution：1MP(1284*724)
Frame rate：720P 30fps Module Size：38*38mm(L*W)
Pixel Size：3.0μm x 3.0μm Lens view：Optional
Focus：Fixed Interface：DVP
System compatible：Linux, Windows ,Android
Assembly technique：SMT (ROSH)
Function：Wide Angle Data Storage Options：Full HD
DGZX-HDF2010-A46 2MP DVP camera module MI2010 MT9D111 sensor, wide angle YUV with ISP, infrared night vision
Infrared night vision camera module, Large field of view wide angle camera module, Dvp Camera Module
Special Features:NIGHT VISION, face recognition
Network:SDK Video Compression Format:RAW
Image Sensor:MI2010 MT9D111 Interface:DVP
Module Dimensions:46*14*24mm(L*W*H)
HD:2K 1080P Pixel:1600x1200
Frame rate:15fps Lens Size:1/3.2 inch
Color space / compression:RAW RAW
System compatible:Windows Android Linux
Dogoozx is a personalized customization service provider for camera module heads. Customized designs are welcome!
