Wide Angle

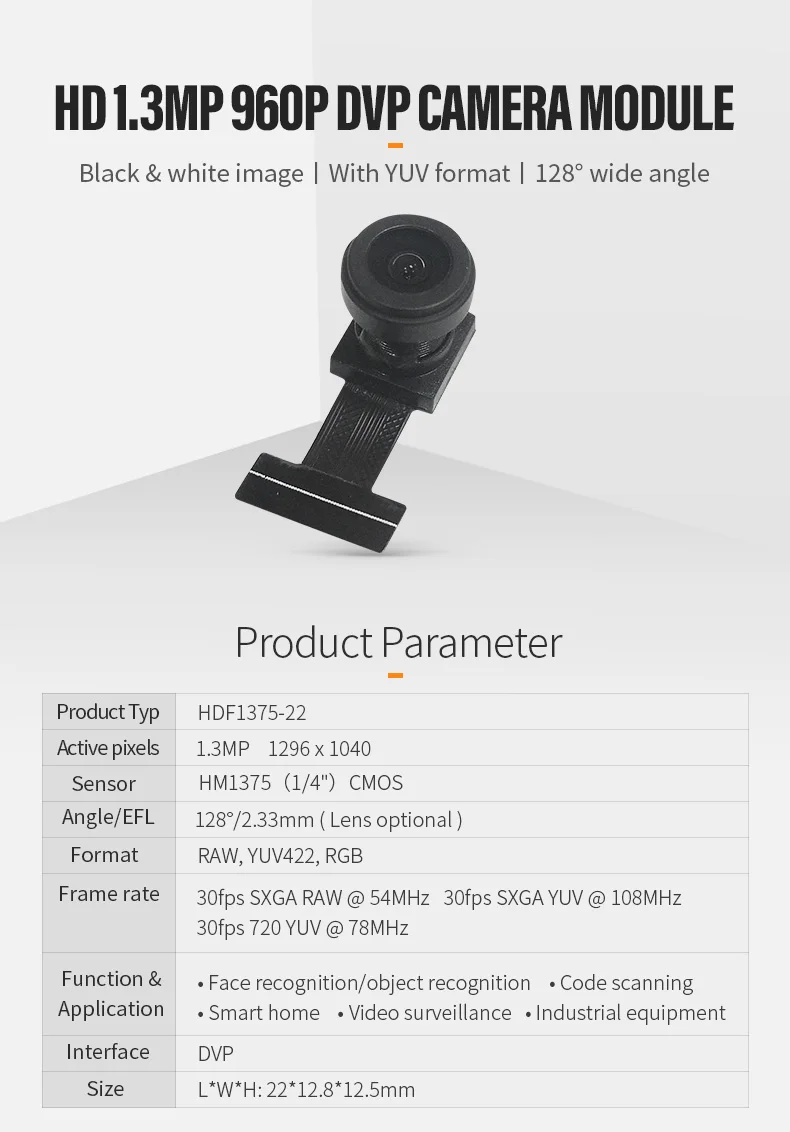

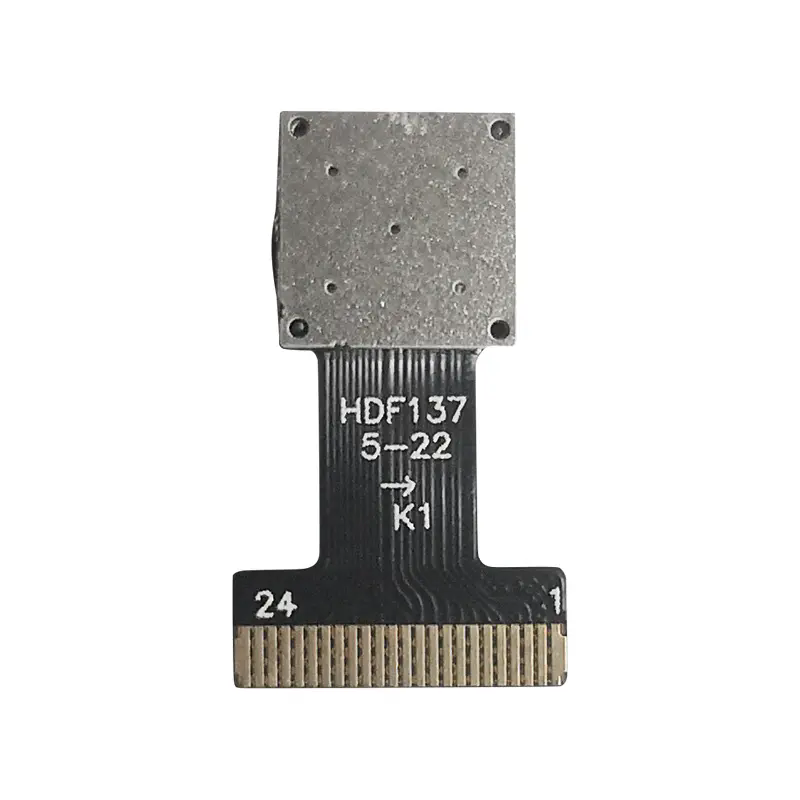

DGZX 1.3MP DVP HD 720P RAW YUV 30fps Camera Module
Product Typ：DGZX-HDF1375-22
Active pixels：1.3MP 1296×1040
Sensor：HM1375(1/4″)CMOS
Angle/EFL：128°/2.33mm (Lens optional )
Format：RAW, YUV422, RGB
Frame rate：30fps SXGA RAW @ 54MHz 30fps SXGA YUV @ 108MHz30fps 720 YUV @ 78MHz
Function & Application：● Face recognition/objectrecognition ● Code scanning ● Smart home ● Video surveillance ● lndustrial equipment
Interface：DVP

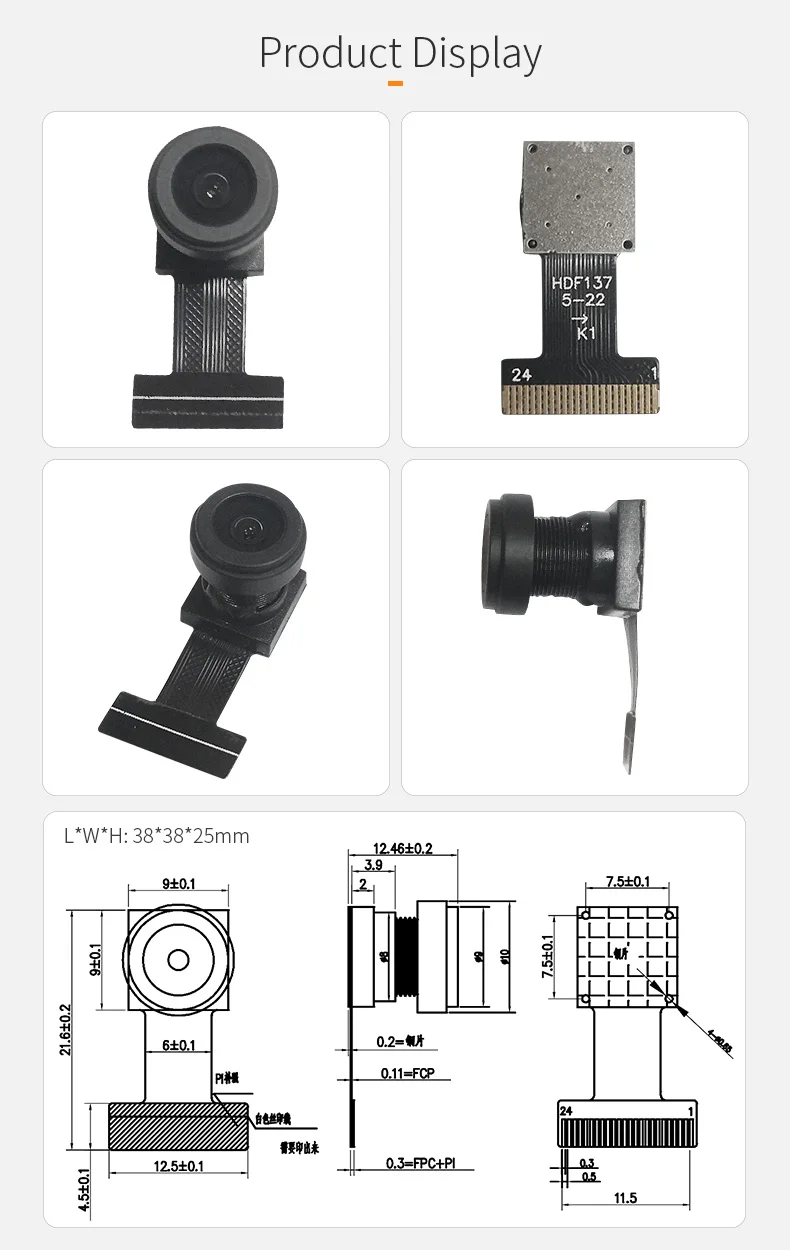

Size：L*W*H: 22*12.8*12.5mm
RELATED PRODUCTS
DGZX-HDF2010-A46 2MP DVP camera module MI2010 MT9D111 sensor, wide angle YUV with ISP, infrared night vision
Infrared night vision camera module, Large field of view wide angle camera module, Dvp Camera Module
Special Features:NIGHT VISION, face recognition
Network:SDK Video Compression Format:RAW
Image Sensor:MI2010 MT9D111 Interface:DVP
Module Dimensions:46*14*24mm(L*W*H)
HD:2K 1080P Pixel:1600x1200
Frame rate:15fps Lens Size:1/3.2 inch
Color space / compression:RAW RAW
System compatible:Windows Android Linux
