HD

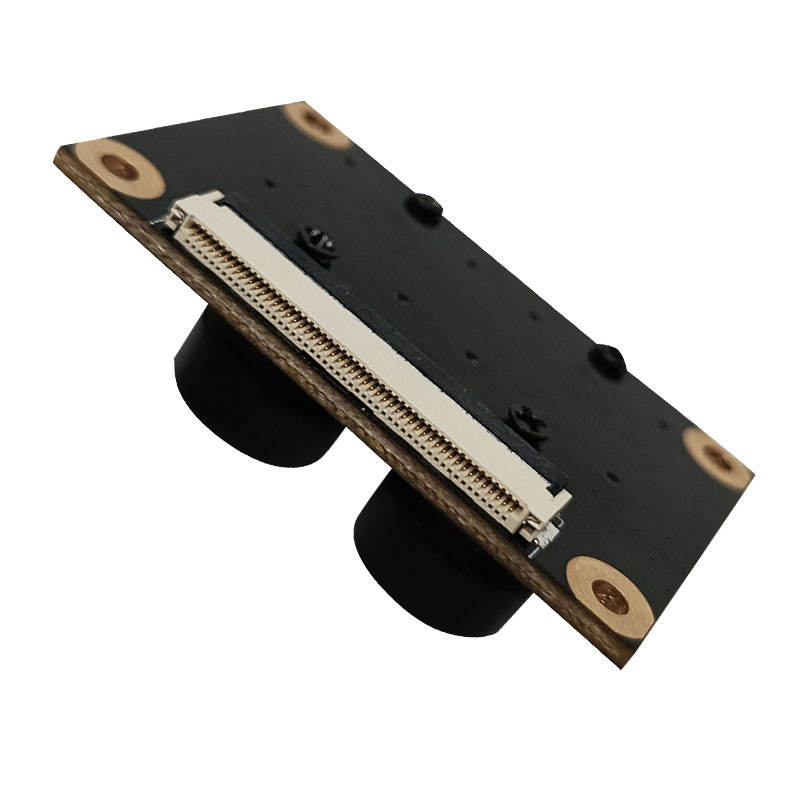

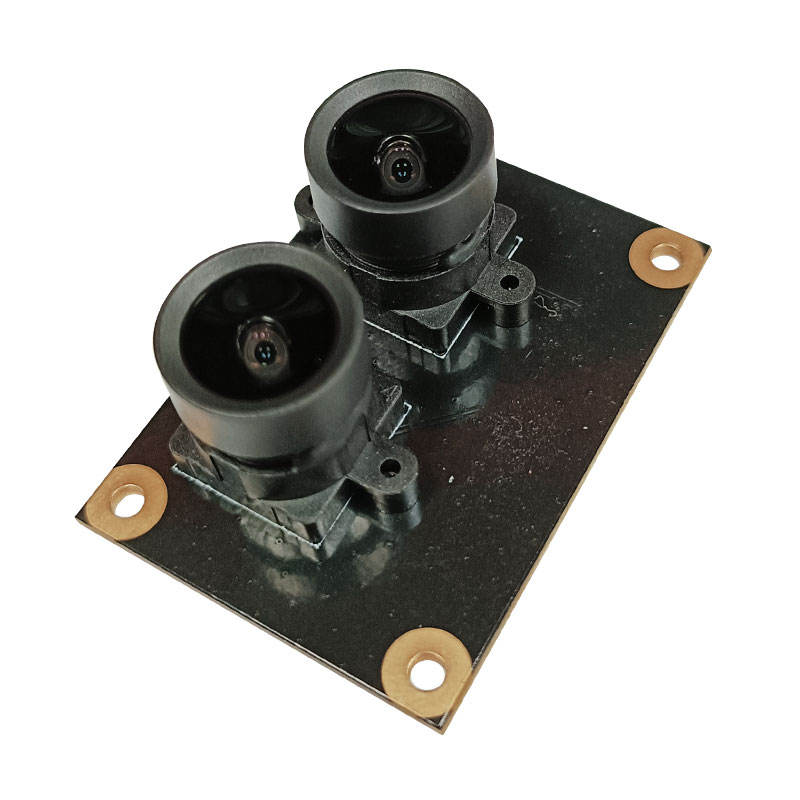

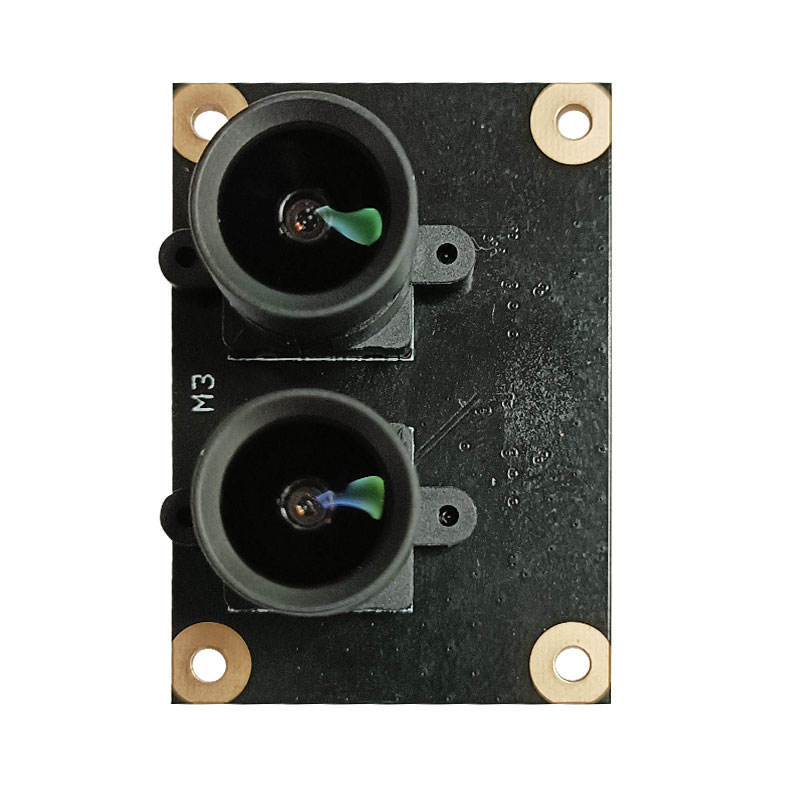

DGZX 5MP Dvp HD Binocular Camera Module
Product Typ：DGZX-AS-AA048A65D88-45×32
Active pixels：5MP 2592×1944
Sensor：OV5640(1/4″)CMOS
View angle：Optional lens
Frame rate：2592×1944:15fps 1080p:30fps 1280×960:45 fps 720p:60fps VGA:90fps QVGA:120 fps
Features & Application：Face Recognition; Live Body Detection; Security Monitoring;Self-service Terminal, Smart Home; 3D Reconstruction, etc.
Interface：DVP
Size：L*W: 45*32mm (PCB)
RELATED PRODUCTS
DGZX Monochrome Sensor AR0144 Dvp 1MP HD 720P Global Shutter 1/4 Inch 60fps Low Power Drones Barcode Scanning Camera Module
DGZX-AS-AE448A10D2-55
Active pixels：1MP 1280Hx800V
Sensor：AR0144(1/4")CMOS
Angle：125°/2.6mm(Optional lens)
Format：YUY2 /YUV/JPEG /MJPEG
Frame rate：1280Hx800V:60fps 720p:66 fps
Features：● Barcode scanner ● Gesture Recognition ● 3Dscanning ● Positional tracking ● lris scanning ● Augmented reality ● Virtual reality ● Biometrics ● Machine vision
Interface：DVP
Size：L*W*H:55*19.2*17.8mm(customizable)
DGZX NT99141 Dvp 1MP 720P HD Mini Sensor PCB Board for Robotic Machine Vision MCU ESP32 Camera Module
DGZX-HDF99141-38x38
Sensor Type：1/4" NT99141 Resolution：1MP(1284*724)
Frame rate：720P 30fps Module Size：38*38mm(L*W)
Pixel Size：3.0μm x 3.0μm Lens view：Optional
Focus：Fixed Interface：DVP
System compatible：Linux, Windows ,Android
Assembly technique：SMT (ROSH)
Function：Wide Angle Data Storage Options：Full HD
DGZX-HDF2010-A46 2MP DVP camera module MI2010 MT9D111 sensor, wide angle YUV with ISP, infrared night vision
Infrared night vision camera module, Large field of view wide angle camera module, Dvp Camera Module
Special Features:NIGHT VISION, face recognition
Network:SDK Video Compression Format:RAW
Image Sensor:MI2010 MT9D111 Interface:DVP
Module Dimensions:46*14*24mm(L*W*H)
HD:2K 1080P Pixel:1600x1200
Frame rate:15fps Lens Size:1/3.2 inch
Color space / compression:RAW RAW
System compatible:Windows Android Linux
