HDWith ISP

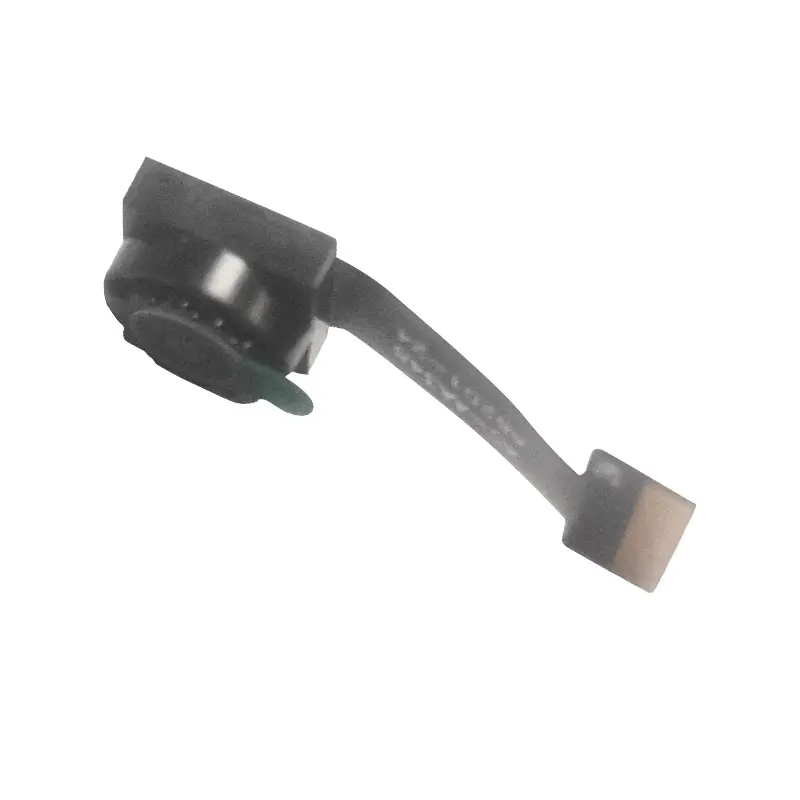

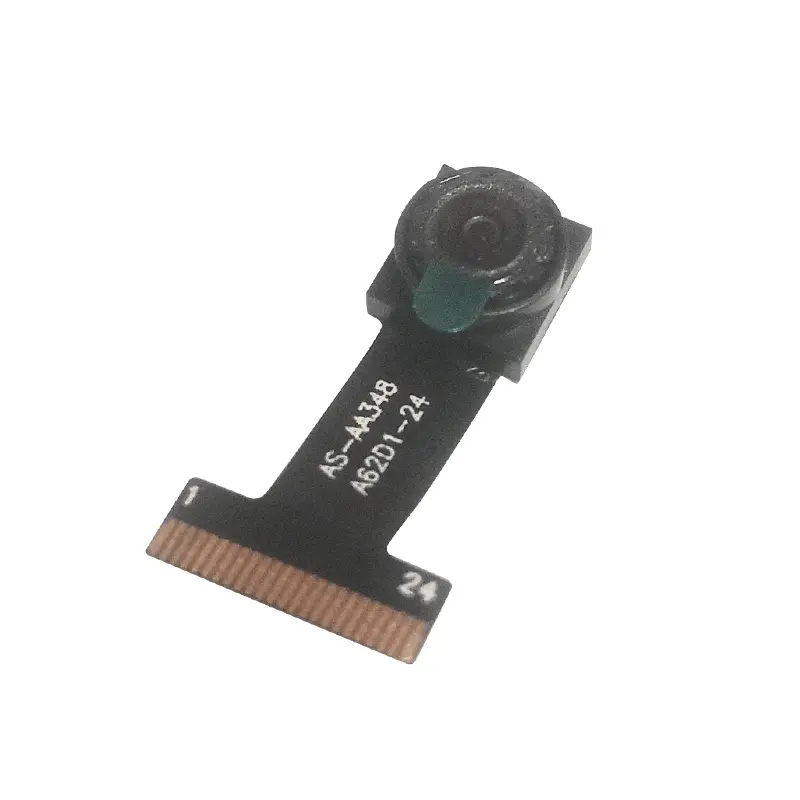

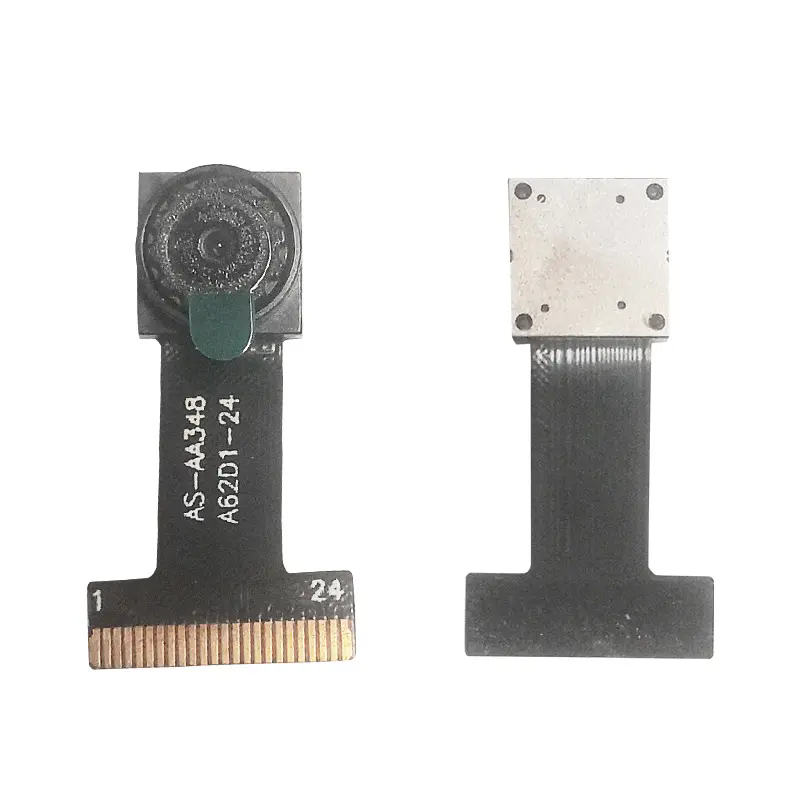

DGZX DVP 2MP CMOS ISP Sensor Infrared Ov2643 Camera Module

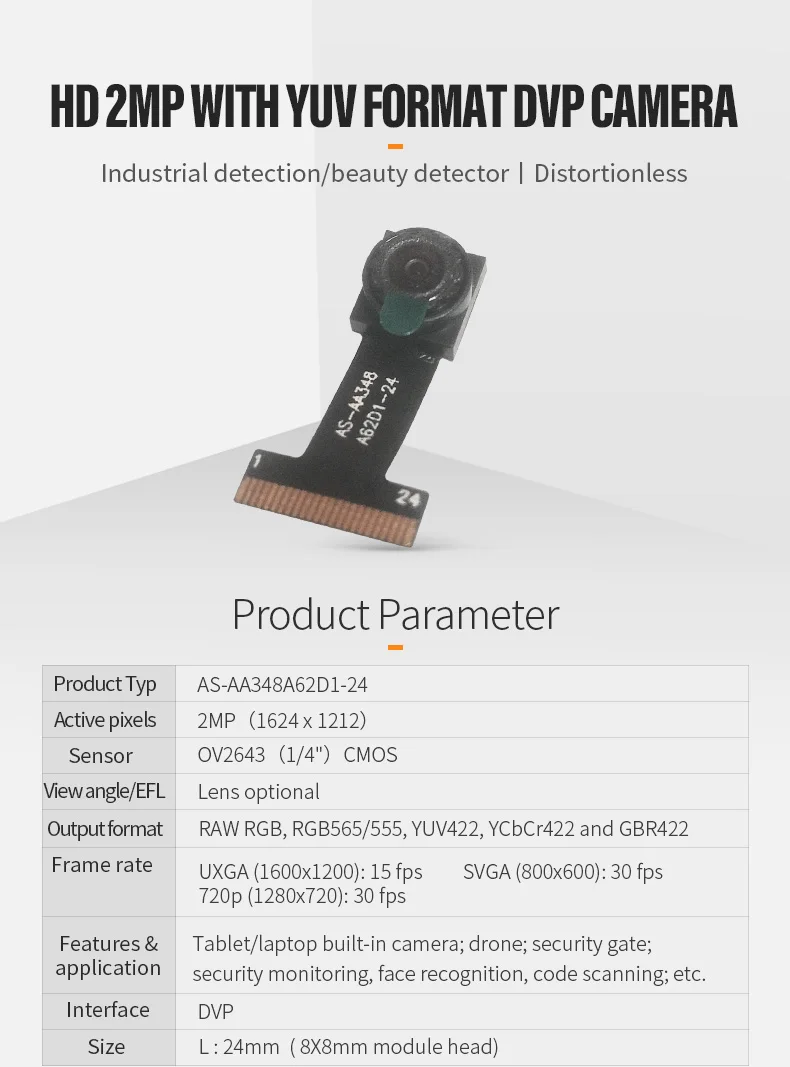

Product Typ：DGZX-AS-AA348A62D1-24
Active pixels：2MP(1624×1212)
Sensor：OV2643(1/4″)CMOS
View angle/EFL：Lens optional
Output format：RAW RGB,RGB565/555,YUV422,YCbCr422 and GBR422
Frame rate：UXGA(1600×1200): 15 fps 720p(1280×720): 30 fps SVGA (800×600): 30 fps
Features & application：Tablet/laptop built-in camera, drone, security gate,security monitoring, face recognition, code scanning; etc.
Interface：DVP

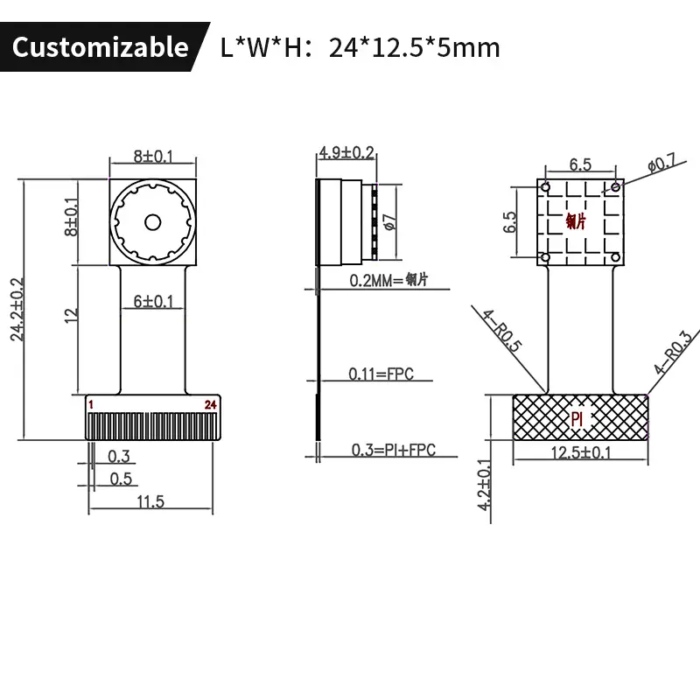

Size：L:24mm(8X8mm module head)
RELATED PRODUCTS
DGZX Monochrome Sensor AR0144 Dvp 1MP HD 720P Global Shutter 1/4 Inch 60fps Low Power Drones Barcode Scanning Camera Module
DGZX-AS-AE448A10D2-55
Active pixels：1MP 1280Hx800V
Sensor：AR0144(1/4")CMOS
Angle：125°/2.6mm(Optional lens)
Format：YUY2 /YUV/JPEG /MJPEG
Frame rate：1280Hx800V:60fps 720p:66 fps
Features：● Barcode scanner ● Gesture Recognition ● 3Dscanning ● Positional tracking ● lris scanning ● Augmented reality ● Virtual reality ● Biometrics ● Machine vision
Interface：DVP
Size：L*W*H:55*19.2*17.8mm(customizable)
DGZX-HDF2010-A46 2MP DVP camera module MI2010 MT9D111 sensor, wide angle YUV with ISP, infrared night vision
Infrared night vision camera module, Large field of view wide angle camera module, Dvp Camera Module
Special Features:NIGHT VISION, face recognition
Network:SDK Video Compression Format:RAW
Image Sensor:MI2010 MT9D111 Interface:DVP
Module Dimensions:46*14*24mm(L*W*H)
HD:2K 1080P Pixel:1600x1200
Frame rate:15fps Lens Size:1/3.2 inch
Color space / compression:RAW RAW
System compatible:Windows Android Linux
Dogoozx is a personalized customization service provider for camera module heads. Customized designs are welcome!
